INFINEON XC226796F80LACKXUMA1

Manufacturer No:

XC226796F80LACKXUMA1

Manufacturer:

INFINEON

Package:

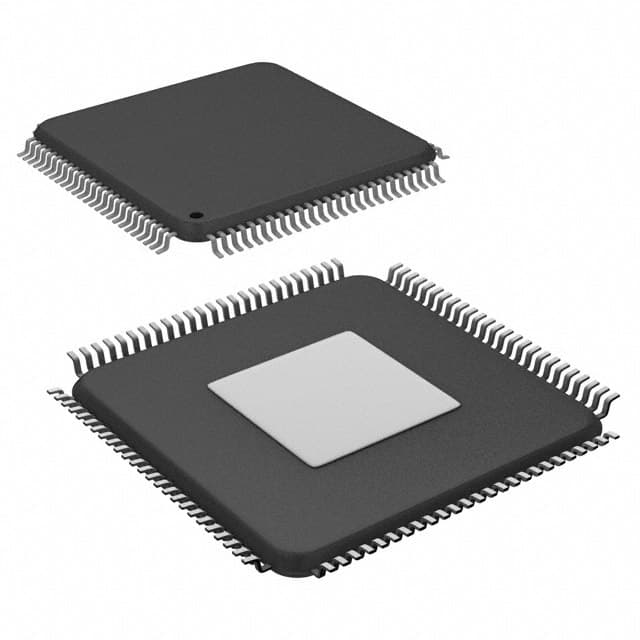

100-LQFP Exposed Pad

Description:

768KB 768K x 8 FLASH C166SV2 16/32-Bit Microcontroller XC22xx Series SA*XC2267 100 Pin 80MHz 1.5V 100-LQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC226796F80LACKXUMA1 information

INFINEON XC226796F80LACKXUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON XC226796F80LACKXUMA1.

Type
Parameter

Factory Lead Time
26 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
100-LQFP Exposed Pad

Number of Pins
100

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
XC22xx

Published
2001

JESD-609 Code
e3

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
3A991.A.2

Terminal Finish
Tin (Sn)

Max Power Dissipation
1W

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
1.5V

Frequency
80MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SA*XC2267

Supply Voltage-Min (Vsup)
1.4V

Interface
CAN, EBI/EMI, I2C, I2S, LIN, SPI, UART, USART

Memory Size
768kB

Oscillator Type
Internal

Number of I/O
75

RAM Size
82K x 8

Voltage - Supply (Vcc/Vdd)
3V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
C166SV2

Peripherals
DMA, I2S, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
16/32-Bit

Program Memory Size
768KB 768K x 8

Connectivity
CANbus, EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI

Bit Size
32

Data Converter
A/D 16x8/10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
NO

PWM Channels
YES

Halogen Free
Halogen Free

DAC Channels
NO

Number of Timers/Counters
5

Download datasheets and manufacturer documentation for INFINEON XC226796F80LACKXUMA1.

XC226796F80LACKXUMA1 Overview

Packaged in a 100-LQFP Exposed Pad format, this MCU is available in a compact size. There are 75 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 16/32-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The XC22xx series includes this electrical component. There is 768KB 768K x 8 bytes of program memory in MCU, which corresponds to the size of the program. With a C166SV2 Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER uPs/uCs/Peripheral IC. During the manufacturing process, 100 terminations were applied to the IC chip. 32-bits are used in Microcontroller. The MCU chip's supply output is 1.5V volts. Currently, MCU chip has NO DMA channels. 768kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number SA*XC2267. In the case of 80MHz frequency operation, it can perform efficiently. There are YES PWM channels on the device. The chip has 100 pins. The clock has 5 timers/counters to keep track of the time.

XC226796F80LACKXUMA1 Features

100-LQFP Exposed Pad package
Mounting type of Surface Mount

XC226796F80LACKXUMA1 Applications

There are a lot of Infineon Technologies
XC226796F80LACKXUMA1 Microcontroller applications.

Equipment control
Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
