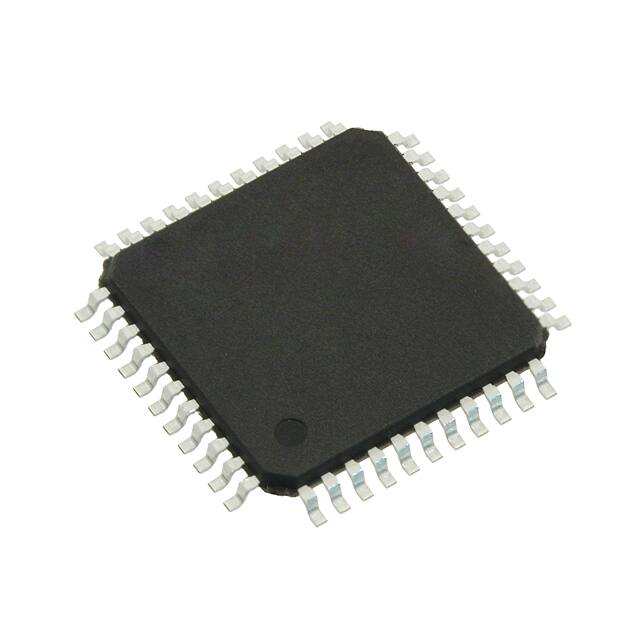

AMD XC18V01VQ44C

Manufacturer No:

XC18V01VQ44C

Manufacturer:

AMD

Package:

44-TQFP

Description:

Surface Mount Tray Configuration Proms for FPGAs 3 (168 Hours) In System Programmable Active XC18V01

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC18V01VQ44C information

AMD XC18V01VQ44C technical specifications, attributes, parameters and parts with similar specifications to AMD XC18V01VQ44C.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
44-TQFP

Surface Mount
YES

Number of Pins
44

Operating Temperature
0°C~70°C

Packaging
Tray

Published
1999

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Voltage - Supply
3V~3.6V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
XC18V01

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Programmable Type
In System Programmable

Clock Frequency
33MHz

Organization
128KX8

Memory Width
8

Density
1 Mb

Standby Current-Max
0.01A

Access Time (Max)
15 ns

Parallel/Serial
PARALLEL/SERIAL

Memory IC Type
CONFIGURATION MEMORY

Endurance
20000 Write/Erase Cycles

Data Retention Time-Min
20

Length
10mm

Height Seated (Max)
1.2mm

Width
10mm

Radiation Hardening
No

RoHS Status
Non-RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for AMD XC18V01VQ44C.

Product Description:

The XC18V01VQ44C is a 1 Mb Configuration Memory IC from Xilinx Inc., designed for use in Field-Programmable Gate Arrays (FPGAs). This memory device is optimized for high-speed configuration and data storage, featuring a maximum access time of 15 ns. The XC18V01VQ44C is a surface-mount device with a 44-pin TQFP package, making it suitable for a wide range of applications.

Features:

High-speed configuration and data storage with a maximum access time of 15 ns
1 Mb density with an organization of 128K x 8 bits
Operating supply voltage range of 3V to 3.6V
Operating temperature range of 0°C to 70°C
In-system programmable with a clock frequency of 33 MHz
Endurance of 20,000 write/erase cycles
ECCN code EAR99, RoHS compliant

Applications:

Primary applications: High-speed data storage and configuration in FPGAs, embedded systems, and other digital devices
Secondary applications: Data logging, storage, and retrieval in industrial control systems, medical devices, and automotive systems

Alternative Parts:

XC18V01VQ44C is an alternative to other configuration memory ICs from Xilinx Inc., such as the XC18V01VQ44C-1 and XC18V01VQ44C-2.

Embedded Modules:

The XC18V01VQ44C is used in various embedded modules, including:
- Xilinx FPGA development boards
- Embedded system platforms
- High-speed data storage and retrieval systems

FAQs:

Q: What is the maximum access time of the XC18V01VQ44C? A: The maximum access time of the XC18V01VQ44C is 15 ns.

Q: What is the operating supply voltage range of the XC18V01VQ44C? A: The operating supply voltage range of the XC18V01VQ44C is 3V to 3.6V.

Q: Is the XC18V01VQ44C RoHS compliant? A: No, the XC18V01VQ44C is not RoHS compliant due to the presence of lead in the terminal finish.

Q: What is the endurance of the XC18V01VQ44C? A: The endurance of the XC18V01VQ44C is 20,000 write/erase cycles.

Q: What is the package type of the XC18V01VQ44C? A: The package type of the XC18V01VQ44C is a 44-pin TQFP package.

Q: What is the operating temperature range of the XC18V01VQ44C? A: The operating temperature range of the XC18V01VQ44C is 0°C to 70°C.
