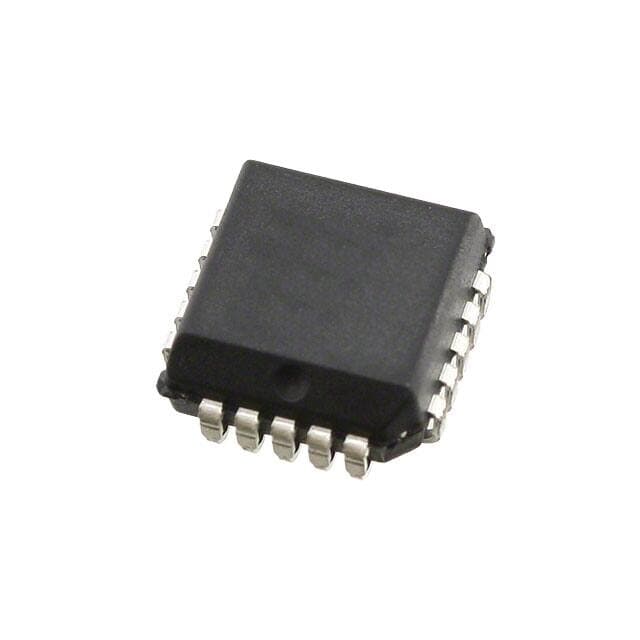

AMD XC1765ELPC20C

Manufacturer No:

XC1765ELPC20C

Manufacturer:

AMD

Package:

20-LCC (J-Lead)

Description:

Surface Mount 65kb Mb Tube Configuration Proms for FPGAs 3 (168 Hours) OTP Obsolete XC1765EL not_compliant

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC1765ELPC20C information

AMD XC1765ELPC20C technical specifications, attributes, parameters and parts with similar specifications to AMD XC1765ELPC20C.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
20-LCC (J-Lead)

Surface Mount
YES

Number of Pins
20

Operating Temperature
0°C~70°C

Packaging
Tube

Published
2000

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Additional Feature
USED FOR STORING THE CONFIGURATION BITSTREAMS OF XILINX FPGAS

HTS Code
8542.32.00.61

Technology
CMOS

Voltage - Supply
3V~3.6V

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
XC1765EL

Pin Count
20

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
3V

Programmable Type
OTP

Memory Size
65kb

Operating Mode
SYNCHRONOUS

Clock Frequency
2.5MHz

Supply Current-Max
0.005mA

Organization
64KX1

Output Characteristics
3-STATE

Memory Width
1

Standby Current-Max
0.00005A

Memory Density
65536 bit

Parallel/Serial
SERIAL

I/O Type
COMMON

Memory IC Type
CONFIGURATION MEMORY

Length
8.9662mm

Height Seated (Max)
4.572mm

Width
8.9662mm

Download datasheets and manufacturer documentation for AMD XC1765ELPC20C.

Datasheets:

xilinxinc-xc1736esog8c-datasheets-4352.pdf

XC1765ELPC20C Overview

An interesting 20-LCC (J-Lead) package is used for this.The external packaging of Tube is made of Tube plastic.Licensed to operate in 0°C~70°C.This device can be programmed using the OTP language.There is a voltage of 3V~3.6V applied to the device.The memory device is mounted in the Surface Mount position.FPGA is limFPGAed to 65kb bytes for the size of the data storage.XC1765EL will give you other related parts.In order for it to function, it requires a voltage supply of 3.3V.Different types of 20 terminations are available with different functions.FPGA is possible to use this memory device wFPGAh a maximum voltage of 3.6V.There must be a minimum voltage of 3V to supply the device with the power it needs.The memory chip in this picture is called a CONFIGURATION MEMORY memory chip.If you're reflow soldering, you shouldn't go above 225.20 pins are located on the board.A SERIAL-processing method is used to transfer data through this memory.The memory chip will not operate at a voltage above 0.005mA.In the package, you will find a set of 20 pins.Taking the speed of the IC into consideration, this is a memory IC that can work at a frequency of 2.5MHz.In the memory, the I/O configuration has been set to COMMON.Using a 3.3V power supply is recommended for best results.For better customer service, USED FOR STORING THE CONFIGURATION BITSTREAMS OF XILINX FPGAS is added.

XC1765ELPC20C Features

Operating temperature: 0°C~70°C.
OTP program capability.
CONFIGURATION MEMORY memory IC.
SERIAL processing.
COMMON I/O equipped.

XC1765ELPC20C Applications

There are a lot of Xilinx Inc.
XC1765ELPC20C applications of configuration proms for FPGAs.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
