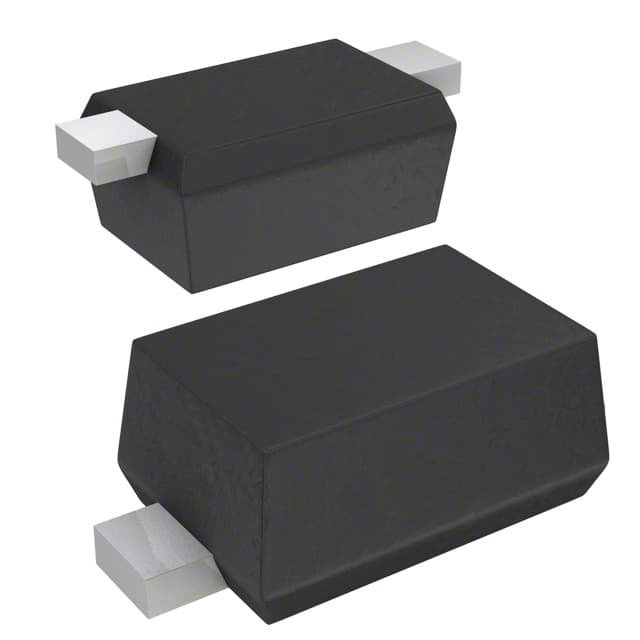

TOREX XBS024S15R-G

Manufacturer No:

XBS024S15R-G

Manufacturer:

TOREX

Package:

SC-79, SOD-523

Description:

Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 600mV @ 200mA 125°C Max 2?A @ 40V Tape & Reel (TR) SC-79, SOD-523 Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XBS024S15R-G information

TOREX XBS024S15R-G technical specifications, attributes, parameters and parts with similar specifications to TOREX XBS024S15R-G.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-79, SOD-523

Packaging
Tape & Reel (TR)

Published
2009

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

HTS Code
8541.10.00.70

Subcategory
Rectifier Diodes

Operating Temperature (Max)
125°C

Number of Elements
1

Configuration
SINGLE

Speed
Small Signal =< 200mA (Io), Any Speed

Diode Type
Schottky

Current - Reverse Leakage @ Vr
2?A @ 40V

Voltage - Forward (Vf) (Max) @ If
600mV @ 200mA

Operating Temperature - Junction
125°C Max

Output Current-Max
0.2A

Voltage - DC Reverse (Vr) (Max)
40V

Max Reverse Voltage (DC)
40V

Average Rectified Current
200mA

Reverse Recovery Time
4 ns

Non-rep Pk Forward Current-Max
1A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TOREX XBS024S15R-G.

Datasheets:

torexsemiconductorltd-xbs024s15rg-datasheets-0455.pdf

XBS024S15R-G Overview

A rectified current of 200mA volts is averaged for this device.Phase diode rectifier is possible to produce a maximum output current by setting the output current to 0.2A.

XBS024S15R-G Features

an average rectified current of 200mA volts
0.2A is the maximum value

XBS024S15R-G Applications

There are a lot of Torex Semiconductor Ltd
XBS024S15R-G applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
