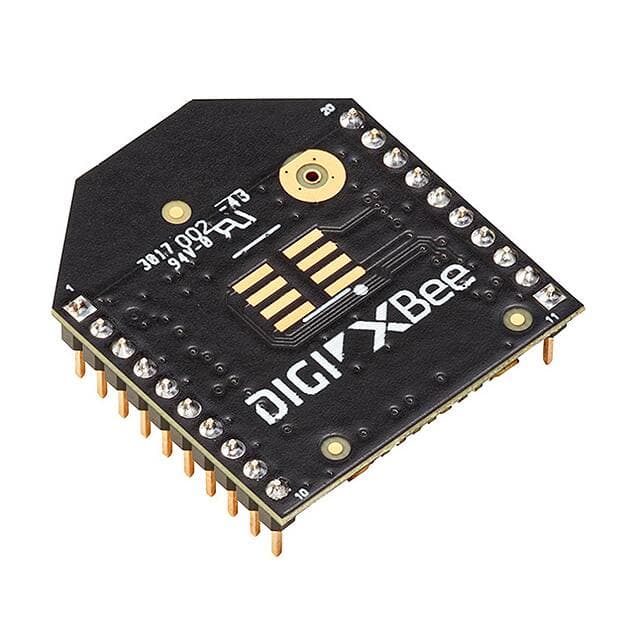

Digi XB3-24Z8PT-J

Manufacturer No:

XB3-24Z8PT-J

Manufacturer:

Digi

Package:

Module

Description:

2.4GHz 802.15.4 -40°C~85°C 2.1V~3.6V I2C, SPI, UART Tray Integrated, Trace 250kbps 8dBm Zigbee® -103dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XB3-24Z8PT-J information

Digi XB3-24Z8PT-J technical specifications, attributes, parameters and parts with similar specifications to Digi XB3-24Z8PT-J.

Type
Parameter

Factory Lead Time
3 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
XBee® 3 Zigbee 3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Voltage - Supply
2.1V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Frequency
2.4GHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
X-XDMA-T20

Memory Size
1MB Flash 128kB RAM

Data Rate
250kbps

Utilized IC / Part
EFR32MG

Protocol
Zigbee®

Telecom IC Type
TELECOM CIRCUIT

Power - Output
8dBm

RF Family/Standard
802.15.4

Sensitivity
-103dBm

Serial Interfaces
I2C, SPI, UART

Current - Receiving
15mA

Current - Transmitting
40mA

Modulation
DSSS

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Digi XB3-24Z8PT-J.

Datasheets:

sparkfunelectronics-wrl15454-datasheets-7768.pdf

XB3-24Z8PT-J Overview

As far as RF Transceiver' mounting is concerned, Through Hole is adopted.optimized performance is achieved by utilizing the Tray package in this RF Transceiver module.Throughout this RF Transceiver module, there are 20 terminations.During Transceiver operation, the operating temperature should remain at -40°C~85°C.In the XBee® 3 Zigbee 3 family, this part palys an important role in RF Transceiver Module's traget applications.It is possible to supply 2.1V~3.6V volts to the RF Transceiver.RF Transceiver Modules operate with a frequency of 2.4GHz Hz.

XB3-24Z8PT-J Features

Through Hole
Tray package
20 terminations
2.1V~3.6V volts

XB3-24Z8PT-J Applications

There are a lot of Digi
XB3-24Z8PT-J RF Transceiver Modules applications.

Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
Thermostats
Smart Meters
HVAC
