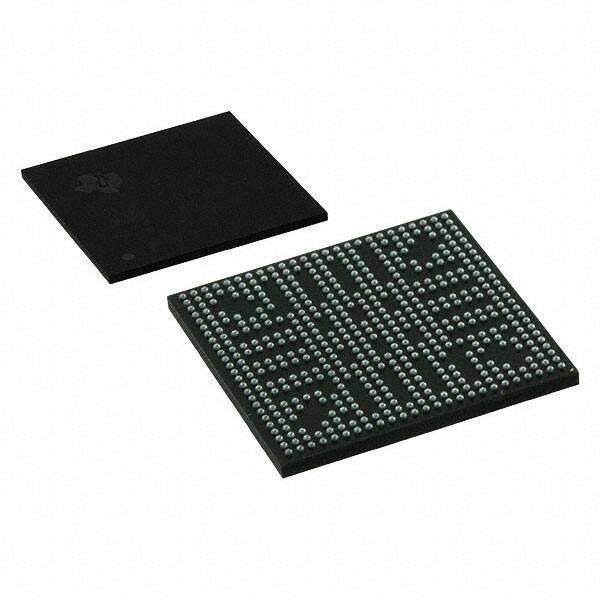

TI XAM3517ZCN

Manufacturer No:

XAM3517ZCN

Manufacturer:

Package:

491-LFBGA

Description:

0.65mm ARM® Cortex®-A8 32-bit Microprocessor Sitara? Series AM3517 491-Pin 600MHz 1.2V 491-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XAM3517ZCN information

TI XAM3517ZCN technical specifications, attributes, parameters and parts with similar specifications to TI XAM3517ZCN.

Type
Parameter

Mount
Surface Mount

Package / Case
491-LFBGA

Number of Pins
491

Operating Temperature
0°C~90°C TJ

Packaging
Bulk

Series
Sitara?

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
491

Subcategory
Microprocessors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.2V

Terminal Pitch
0.65mm

Frequency
600MHz

Base Part Number
AM3517

Pin Count
491

Operating Supply Voltage
1.2V

Voltage
1.248V

Interface
Serial, USB

Memory Size
1GB

Number of I/O
186

RAM Size
64kB

Core Processor
ARM® Cortex®-A8

Bit Size
32

Data Bus Width
16b

Number of Timers/Counters
12

Address Bus Width
16

Core Architecture
ARM

Boundary Scan
YES

Low Power Mode
YES

Format
FLOATING POINT

Integrated Cache
YES

Voltage - I/O
1.8V 3.3V

Number of UART Channels
3

Ethernet
10/100Mbps (1)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
LPDDR, DDR2

USB
USB 2.0 (3), USB 2.0 + PHY (1)

Additional Interfaces
CAN, HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART

Co-Processors/DSP
Multimedia; NEON? SIMD

Security Features
Cryptography

Display & Interface Controllers
LCD

Length
17mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for TI XAM3517ZCN.

Datasheets:

texasinstruments-xam3517zcn-datasheets-7237.pdf

texasinstruments-xam3517zcn-datasheets-7360.pdf

texasinstruments-xam3517zcn-datasheets-7361.pdf

XAM3517ZCN Overview

The embedded microprocessor has been packed in 491-LFBGA for convenient overseas shipping. Using advanced packaging techniques Bulk, high reliability is ensured. A CPU with 1 Core 32-Bit cores and width 1 Core 32-Bit busses is used. Understand how the operating temperature around 0°C~90°C TJ is determined. This is a member of the Sitara? series. With a core count of ARM® Cortex®-A8, this CPU is multicore. A CPU with this architecture uses LPDDR, DDR2 RAM controllers. With its CAN, HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART interfaces, this microprocessor will be able to serve you better. The CPU runs at 1.8V 3.3V when it comes to I/O. uPs/uCs/Peripheral ICs type is MICROPROCESSOR. Use AM3517 when searching for variants of the embedded microprocessor. Overall, there are 491 terminations. The microprocessor should be turned on and run with a voltage supply of 1.2V volts. This microprocessor has an architecture of 32 bits. 600MHz Hz is the frequency at which the CPU operates. To learn about the functions of the pins 491 please refer to their datasheets. An example of a Microprocessors microprocessor can be found here. Generally, data transfer takes place at a rate of 16b bandwidth. Micro processor body consists of 491 pins. There are many applications that use the CPU with Surface Mount mounted. In order to function, the embedded microprocessor must be set to 1.2V. 1.248V is the CPU core voltage. A 64kB amount of RAM (Random-Access Memory) is designed. There are 186 input/output (I/O) channels on the CPU that transfer data. A CPU has memory sized 1GB. An indication of CPU load is provided by 12 counters. 3 UART (Universal Asynchro3us Receiver/Transmitter) channels are provided with this CPU microprocessor

XAM3517ZCN Features

ARM® Cortex®-A8 Core
32-Bit Structure
16b-Bit Data Bus Width
64kB RAM
186 I/Os

XAM3517ZCN Applications

There are a lot of Texas Instruments
XAM3517ZCN Microprocessor applications.

Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
