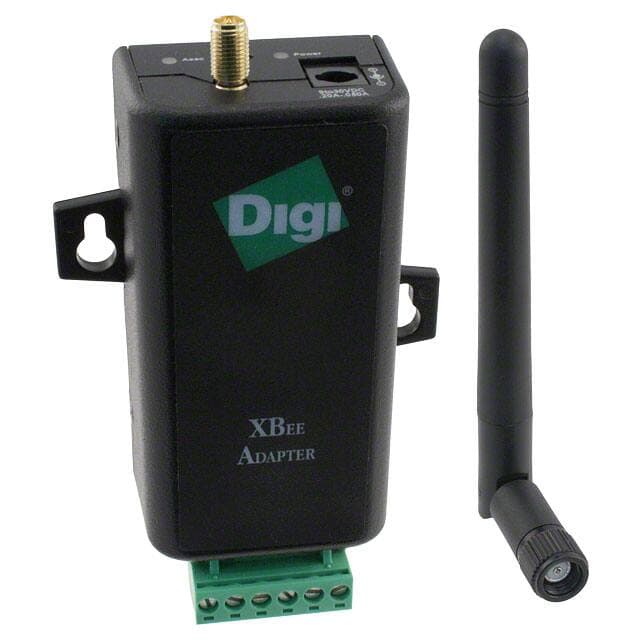

Digi XA-Z14-CS3PH-A

Manufacturer No:

XA-Z14-CS3PH-A

Manufacturer:

Digi

Package:

Description:

XBee-Pro® Series Transceiver 2.4GHz RS-485 DSSS 250kbps -102 dBm 30V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XA-Z14-CS3PH-A information

Digi XA-Z14-CS3PH-A technical specifications, attributes, parameters and parts with similar specifications to Digi XA-Z14-CS3PH-A.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
External

Series
XBee-Pro®

Published
2010

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
70°C

Min Operating Temperature
-40°C

Applications
General Purpose

Voltage - Supply
9V~30V

Frequency
2.4GHz

Function
Transceiver, ZigBee?

Operating Supply Voltage
30V

Interface
RS-485

Logic Function
Transceiver

Power - Output
17dBm 50mW

Sensitivity
-102dBm

Data Rate (Max)
250kbps

Modulation or Protocol
DSSS

Sensitivity (dBm)
-102 dBm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Digi XA-Z14-CS3PH-A.

XA-Z14-CS3PH-A Overview

It is a part of the XBee-Pro® series of RF transmitter and receivers.Providing 9V~30V with the correct supply voltage will improve efficiency.Apps for General Purpose are available on the wireless RF transmitter.For RF Transmitter operation, the maximum operating temperature should be 70°C°C.At a minimum working temperature of -40°C degrees Celsius, it maintains its reliability.A 30V supply voltage provides maximum efficiency.During mounting, a External-mount is used, which allows the RF transmitter and receiver to be secured to the wall.

XA-Z14-CS3PH-A Features

XBee-Pro® series
Minimum of -40°C°C
External

XA-Z14-CS3PH-A Applications

There are a lot of Digi
XA-Z14-CS3PH-A RF Transmitter applications.

TD-SCDMA
Optical transmission devices
Measuring for data transmission
Radio communication equipment
Measuring instruments
Cellular infrastructure
Microwave radios
Small aperture terminals (VSATs)
Intermediate frequency (IF)
Radio frequency (RF)
