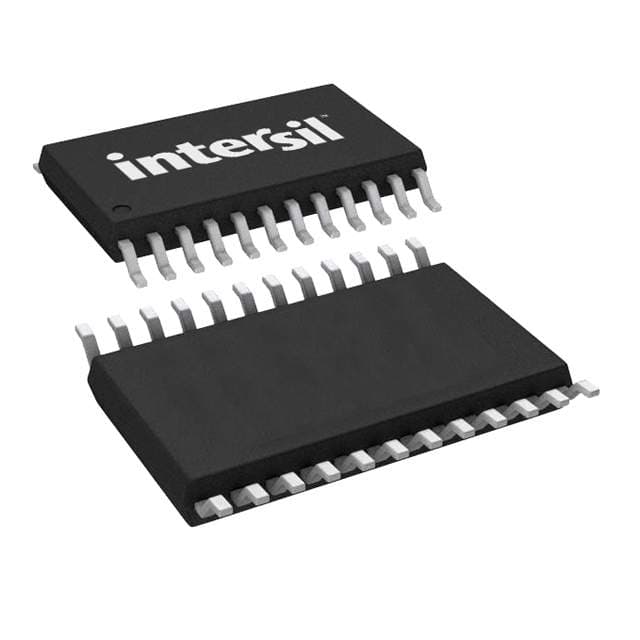

Renesas X9438WV24I

Manufacturer No:

X9438WV24I

Manufacturer:

Renesas

Package:

TSSOP

Description:

24 Terminations 5V 24 Pin Digital Potentiometers I2C 64 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X9438WV24I information

Renesas X9438WV24I technical specifications, attributes, parameters and parts with similar specifications to Renesas X9438WV24I.

Type
Parameter

Package / Case
TSSOP

Surface Mount
YES

Packaging
Bulk

Published
2005

Tolerance
20%

Number of Terminations
24

ECCN Code
EAR99

Temperature Coefficient
300 ppm/°C

Resistance
10kOhm

Number of Positions
64

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Composition
Potentiometer

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.65mm

Frequency
400kHz

Pin Count
24

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Interface
I2C

Memory Type
Non-Volatile

Taper
Linear

Number of Taps
64

Total Resistance
10000Ohm

Resistor Terminal Voltage-Max
5.5V

Resistor Terminal Voltage-Min
-5.5V

Length
7.8mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas X9438WV24I.

Datasheets:

intersil-x9438wv24i-datasheets-2141.pdf

X9438WV24I Overview

Package TSSOP contains it.At Non-Volatile, this pentometer is stored for the first time.This digital potentiometer includes 2 embedded circuits.The digital analogic is secured using this package Bulk.64 taps protect this pentometer against overcurrent.64 positions make up the pentometer.A termination of 24 is intended.The following programmable potentiometer includes 2 functions.Based on the picture, the total resistance of the speed potentiometers is 10000Ohm.The performance of the product is powered by 5V.On the digi devices, you can see the 24 pins.Flow can be restricted using 10kOhm.It ensures stability of the digital resistor if it runs at its maximum 85°C.The temperature must be kept below -40°C in order to maintain reliability.When the frequency is set to 400kHz, it maintains high accuracy.

X9438WV24I Features

Available in TSSOP package
2 Circuits

X9438WV24I Applications

There are a lot of Intersil (Renesas Electronics America)
X9438WV24I Digital Potentiometers applications.

Refrigerator
Programmable computer
Power supply
Power meter
Automatic detection of equipment
Optic fiber network
Adjusting the LCD Display
Voltage control
Replaces mechanical potentiometers
Matching Linear Impedance
