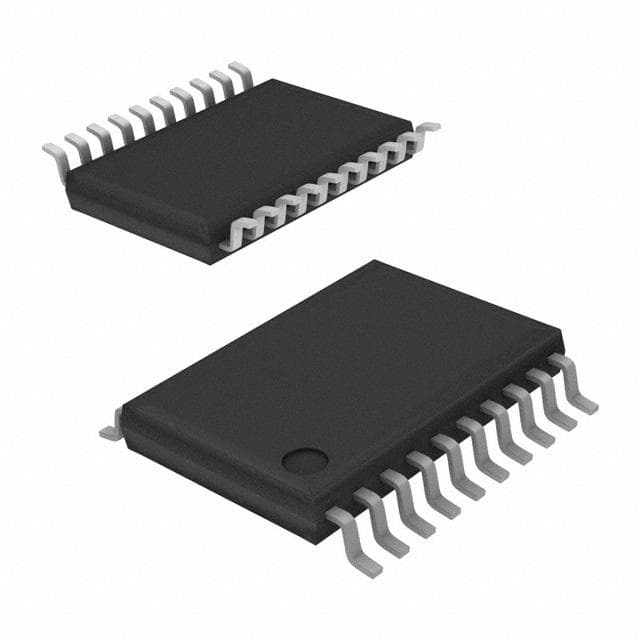

Renesas X9241AYVZT1
Manufacturer No:
X9241AYVZT1
Manufacturer:
Package:
TSSOP
Description:
20 Terminations 5V Digital Potentiometers I2C 64 Positions Min 4.5V V Max 5.5V V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
X9241AYVZT1 information
Renesas X9241AYVZT1 technical specifications, attributes, parameters and parts with similar specifications to Renesas X9241AYVZT1.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Number of Pins
- 20
- Published
- 2005
- Tolerance
- 20%
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 20
- ECCN Code
- EAR99
- Temperature Coefficient
- 300 ppm/°C
- Resistance
- 2kOhm
- Number of Positions
- 64
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Subcategory
- Digital Potentiometers
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 4
- Supply Voltage
- 5V
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Operating Supply Voltage
- 5V
- Power Supplies
- 5V
- Temperature Grade
- COMMERCIAL
- Interface
- I2C
- Number of Circuits
- 4
- Max Supply Voltage
- 5.5V
- Min Supply Voltage
- 4.5V
- Operating Supply Current
- 3mA
- Memory Type
- Non-Volatile
- Converter Type
- DIGITAL POTENTIOMETER
- Taper
- Linear
- Total Resistance
- 2000Ohm
- Resistor Terminal Voltage-Max
- 5V
- Resistor Terminal Voltage-Min
- -3V
- Length
- 6.5mm
- Height Seated (Max)
- 1.2mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas X9241AYVZT1.
Datasheets:
X9241AYVZT1 Overview
There is a TSSOP package containing it.The storage of this pentometer begins at Non-Volatile.Embedded in this digital potentiometer are 4 circuits.A 64 position is contained in pentometer.20 terminations are designed in digital potentiometer.You will find here 4 functions for your reference.The speed potentiometers have a total resistance of 2000Ohm.For its performance, it uses 5V.You can limit the flow by using 2kOhm.In this case, Surface Mount mounts digital potentiometer.20 pins are available on this potentiameter.DIGITAL POTENTIOMETER indicates its type of converter.A potentiometer conducts when its supply voltage is 5V.5V is the voltage it can deliver.70°C ensures stable operation.It operates at 0°C at a minimum to maintain reliability.Components from the Digital Potentiometers family are used.5.5V is its maximum supply voltage.If the supply voltage is set to 4.5V, the electronic potentiometer can operate.This electronic potentiometer needs to operate at 3mA supply current in order to deliver its performance.High accuracy can be maintained at 100kHz frequencies.
X9241AYVZT1 Features
Available in TSSOP package
4 Circuits
20 pins
Operate supply voltage at the range of 5V
X9241AYVZT1 Applications
There are a lot of Intersil (Renesas Electronics America)
X9241AYVZT1 Digital Potentiometers applications.
- Industrial control
- Medical equipment
- Refrigerator
- Programmable computer
- Power supply
- Power meter
- Automatic detection of equipment
- Optic fiber network
- Adjusting the LCD Display
- Voltage control
