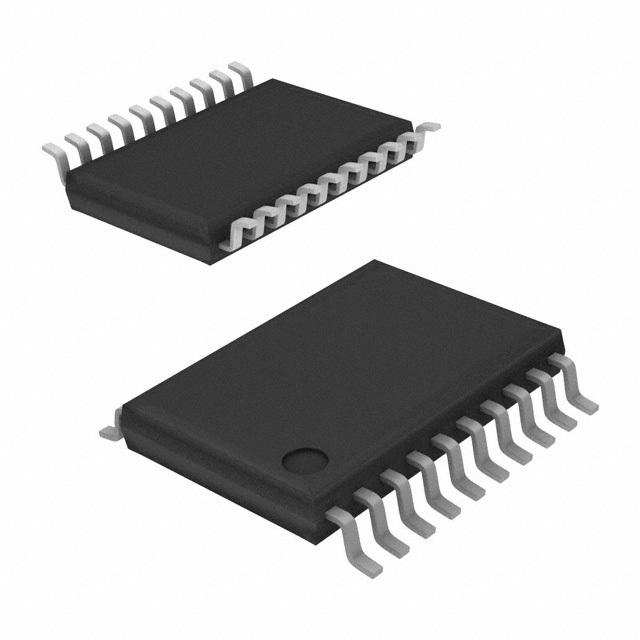

Renesas X9241AUVT2

Manufacturer No:

X9241AUVT2

Manufacturer:

Renesas

Package:

TSSOP

Description:

20 Terminations 5V 20 Pin Digital Potentiometers I2C 64 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X9241AUVT2 information

Renesas X9241AUVT2 technical specifications, attributes, parameters and parts with similar specifications to Renesas X9241AUVT2.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
20

Published
2005

Tolerance
20%

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Temperature Coefficient
300 ppm/°C

Resistance
50kOhm

Number of Positions
64

Terminal Finish
TIN LEAD

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.65mm

Pin Count
20

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
I2C

Number of Circuits
4

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Total Resistance
50000Ohm

Resistor Terminal Voltage-Max
5V

Resistor Terminal Voltage-Min
-3V

Length
6.5mm

Height Seated (Max)
1.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas X9241AUVT2.

Datasheets:

intersil-x9241auvt2-datasheets-3913.pdf

intersil-x9241auvt2-datasheets-2635.pdf

X9241AUVT2 Overview

It is contained in TSSOP pacakge.This pentometer begins to be stored by Non-Volatile.There are embedded 4 circuits in this digital potentiometer.Pentometer consists of 64 positions.It is designed 20 terminations.This programmable potentiometer includes 4 functions for your reference.The total resistance of the speed potentiometers will be 50000Ohm as shown.It is powered by 5V to deliver its perfomance.20 pins can be seen in The digi devices.50kOhm can limit the flow.Digital potentiometer is mounted by Surface Mount.This potentiameter gets 20 pins on it.Its type of converter can be classify by DIGITAL POTENTIOMETER.It is capable of delivering voltage at 5V.The maximum 70°C ensures that the digital resistor runs stablily.To maintain reliability, it operates at a minimum working temperature of 0°C.The pentometer is from Digital Potentiometers family.It is capable of maintaining high accuracy with the frequency of 100kHz.

X9241AUVT2 Features

Available in TSSOP package
4 Circuits
20 pins

X9241AUVT2 Applications

There are a lot of Intersil (Renesas Electronics America)
X9241AUVT2 Digital Potentiometers applications.

Testing equipment
PC
Cell phone
Household appliances
Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
