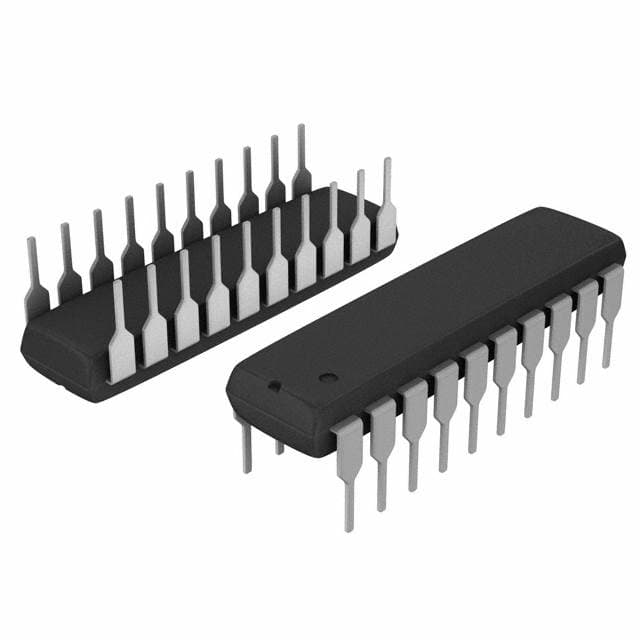

Renesas X9241AUPI

Manufacturer No:

X9241AUPI

Manufacturer:

Renesas

Package:

20-DIP (0.300, 7.62mm)

Description:

20 Terminations 5V 20 Pin X9241A Digital Potentiometers XDCP? Series I2C 64 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X9241AUPI information

Renesas X9241AUPI technical specifications, attributes, parameters and parts with similar specifications to Renesas X9241AUPI.

Type
Parameter

Mounting Type
Through Hole

Package / Case
20-DIP (0.300, 7.62mm)

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
XDCP?

Tolerance
±20%

JESD-609 Code
e3

Feature
Selectable Address

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Temperature Coefficient
300 ppm/°C

Resistance
50kOhm

Number of Positions
64

Terminal Finish
Matte Tin (Sn)

Additional Feature
REST 3 RESISTOR ARRAY VALUES ARE : 50000 OHMS

Technology
CMOS

Voltage - Supply
5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

JESD-30 Code
R-PDIP-T20

Configuration
Potentiometer

Interface
I2C

Number of Circuits
4

Memory Type
Non-Volatile

Taper
Linear

Number of Taps
64

Total Resistance
50000Ohm

Resistance - Wiper (?) (Typ)
40

Resistor Terminal Voltage-Max
5V

Temperature Coefficient (Typ)
±300ppm/°C

Resistor Terminal Voltage-Min
-3V

Length
25.908mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas X9241AUPI.

Datasheets:

renesaselectronicsamericainc-x9241awsiz-datasheets-6512.pdf

X9241AUPI Overview

There are 20-DIP (0.300, 7.62mm) packages in this package.Non-Volatile is the point at which this pentometer starts to be stored.This digital potentiometer has 4 embedded circuits.Tube package provides access to it.To protect this pentometer from overcurrent, there are 64 taps.Positions 64 make up this pentometer.Digital potentiometer is designed wdigital potentiometerh terminations of 20.Listed below are 4 functions included in this programmable potentiometer.Its total resistance will be 50000Ohm.The performance of 5V is provided by 5V.In the digi devices, 20 pins can be seen.The mounting direction should be Through Hole.It is possible for the potentionmeter to supply voltages of 5V.In this digital potentiometer, the temperature range is -40°C~85°C.There is a possibility of limiting the flow by 50kOhm.The X9241A family contains pentometer.When using this digital variable resistor, Selectable Address can be found.Here are some additional features of this digital potentiometer: REST 3 RESISTOR ARRAY VALUES ARE : 50000 OHMS

X9241AUPI Features

Available in 20-DIP (0.300, 7.62mm) package
4 Circuits
Mounting Type: Through Hole
Operate temperature at the range of -40°C~85°C

X9241AUPI Applications

There are a lot of Renesas Electronics America Inc.
X9241AUPI Digital Potentiometers applications.

Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
Power meter
Automatic detection of equipment
Optic fiber network
Adjusting the LCD Display
