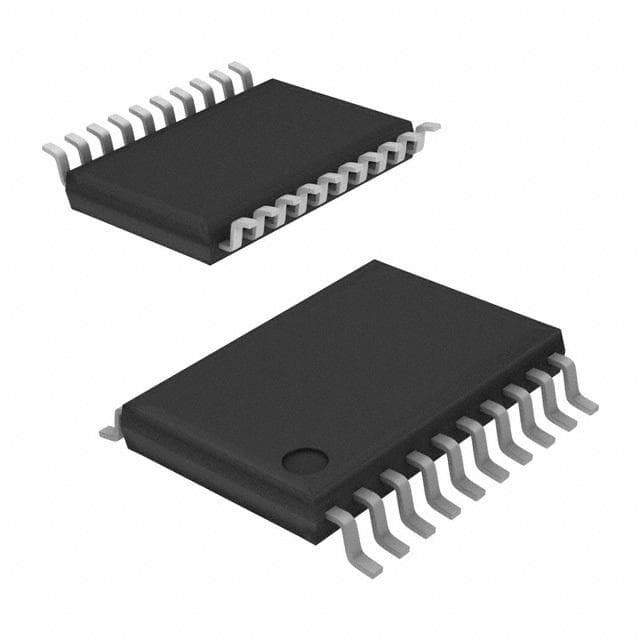

Renesas X9241AMVIT1

Manufacturer No:

X9241AMVIT1

Manufacturer:

Renesas

Package:

TSSOP

Description:

20 Terminations 5V 20 Pin Digital Potentiometers I2C 64 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X9241AMVIT1 information

Renesas X9241AMVIT1 technical specifications, attributes, parameters and parts with similar specifications to Renesas X9241AMVIT1.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Published
2005

Tolerance
20%

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Temperature Coefficient
300 ppm/°C

Number of Positions
64

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
REST 3 RESISTOR ARRAY VALUES ARE : 2000, 10000, 10000 OHMS; NONVOLATILE MEMORY

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.65mm

Frequency
100kHz

Pin Count
20

JESD-30 Code
R-PDSO-G20

Qualification Status
Not Qualified

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Interface
I2C

Number of Circuits
4

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Number of Taps
64

Total Resistance
50000Ohm

Resistor Terminal Voltage-Max
5V

Resistor Terminal Voltage-Min
-3V

Resistance Law
LINEAR

Length
6.5mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas X9241AMVIT1.

Datasheets:

intersil-x9241amvit1-datasheets-1571.pdf

X9241AMVIT1 Overview

There are TSSOP packages in this package.Non-Volatile is the point at which this pentometer starts to be stored.This digital potentiometer has 4 embedded circuits.To protect this pentometer from overcurrent, there are 64 taps.Positions 64 make up this pentometer.Digital potentiometer is designed wdigital potentiometerh terminations of 20.Listed below are 4 functions included in this programmable potentiometer.Its total resistance will be 50000Ohm.The performance of 5V is provided by 5V.In the digi devices, 20 pins can be seen.By Surface Mount, digital potentiometer is mounted.Convertor types can be classified by DIGITAL POTENTIOMETER.At 5V, it can deliver voltage.85°C is the maximum value that ensures the stability of the digital resistor.For reliability, it must operate at -40°C degrees Celsius.Here are some additional features of this digital potentiometer: REST 3 RESISTOR ARRAY VALUES ARE : 2000, 10000, 10000 OHMS; NONVOLATILE MEMORYThere are pentometer in the Digital Potentiometers family.Despite its 100kHz frequency, it can maintain high accuracy.

X9241AMVIT1 Features

Available in TSSOP package
4 Circuits

X9241AMVIT1 Applications

There are a lot of Intersil (Renesas Electronics America)
X9241AMVIT1 Digital Potentiometers applications.

Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
Power meter
Automatic detection of equipment
Optic fiber network
Adjusting the LCD Display
