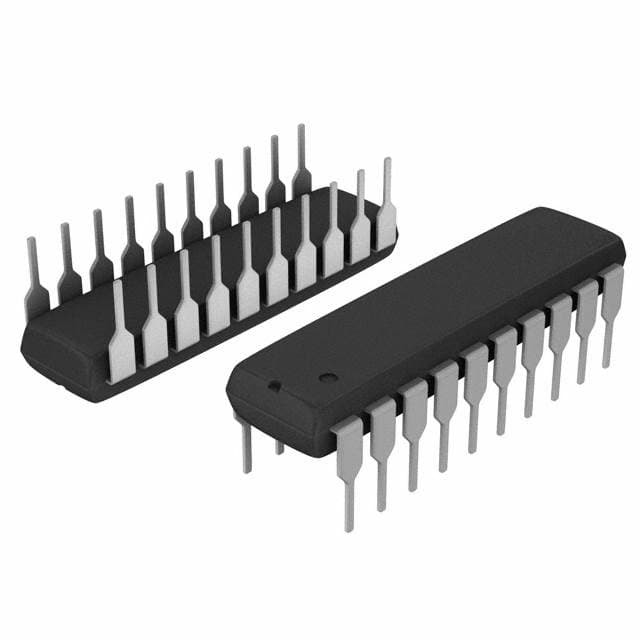

Renesas X9221AYPI

Manufacturer No:

X9221AYPI

Manufacturer:

Renesas

Package:

DIP

Description:

20 Terminations 5V 20 Pin Digital Potentiometers I2C 64 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X9221AYPI information

Renesas X9221AYPI technical specifications, attributes, parameters and parts with similar specifications to Renesas X9221AYPI.

Type
Parameter

Mount
Through Hole

Package / Case
DIP

Published
2005

Tolerance
20%

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
20

ECCN Code
EAR99

Temperature Coefficient
300 ppm/°C

Resistance
2kOhm

Number of Positions
64

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
NONVOLATILE MEMORY

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
5V

Frequency
100kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Interface
I2C

Number of Circuits
2

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Number of Taps
64

Total Resistance
2000Ohm

Resistor Terminal Voltage-Max
5V

Resistor Terminal Voltage-Min
-3V

Height Seated (Max)
5.33mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas X9221AYPI.

Datasheets:

intersil-x9221aypi-datasheets-8116.pdf

intersil-x9221aypi-datasheets-0337.pdf

X9221AYPI Overview

It is contained in DIP pacakge.This pentometer begins to be stored by Non-Volatile.There are embedded 2 circuits in this digital potentiometer.There are 64 taps to protect the overcurrent of this pentometer.Pentometer consists of 64 positions.It is designed 20 terminations.This programmable potentiometer includes 2 functions for your reference.The total resistance of the speed potentiometers will be 2000Ohm as shown.It is powered by 5V to deliver its perfomance.20 pins can be seen in The digi devices.2kOhm can limit the flow.Digital potentiometer is mounted by Through Hole.Its type of converter can be classify by DIGITAL POTENTIOMETER.It is capable of delivering voltage at 5V.The maximum 85°C ensures that the digital resistor runs stablily.To maintain reliability, it operates at a minimum working temperature of -40°C.Please take note of the following additional features of this digital potentiometer: NONVOLATILE MEMORYThe pentometer is from Digital Potentiometers family.It is capable of maintaining high accuracy with the frequency of 100kHz.

X9221AYPI Features

Available in DIP package
2 Circuits

X9221AYPI Applications

There are a lot of Intersil (Renesas Electronics America)
X9221AYPI Digital Potentiometers applications.

Testing equipment
PC
Cell phone
Household appliances
Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
