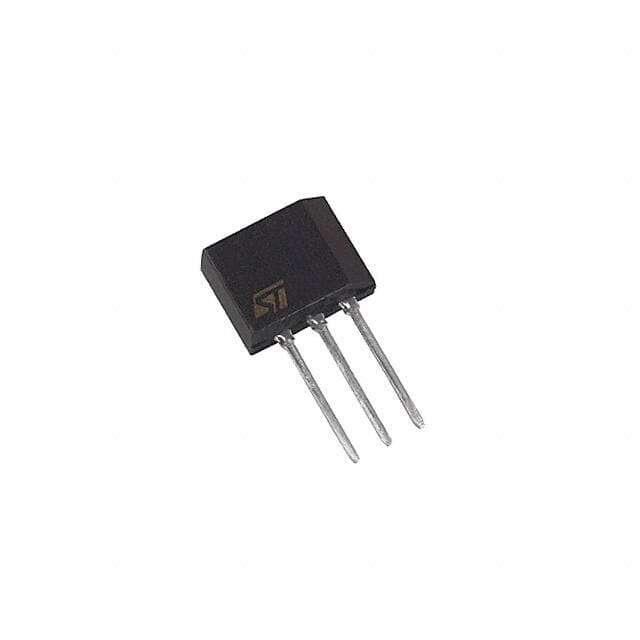

X0402DF 1AA2 information

ST X0402DF 1AA2 technical specifications, attributes, parameters and parts with similar specifications to ST X0402DF 1AA2.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-202 No Tab
  • Surface Mount
  • NO
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Bulk
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • Terminal Finish
  • MATTE TIN
  • HTS Code
  • 8541.30.00.80
  • Subcategory
  • Silicon Controlled Rectifiers
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • 225
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • X0402
  • JESD-30 Code
  • R-PSIP-T3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Trigger Device Type
  • SCR
  • Voltage - Off State
  • 400V
  • Current - Non Rep. Surge 50, 60Hz (Itsm)
  • 30A 33A
  • Current - Gate Trigger (Igt) (Max)
  • 200?A
  • Current - Hold (Ih) (Max)
  • 5mA
  • Current - On State (It (RMS)) (Max)
  • 1.35A
  • Repetitive Peak Off-state Voltage
  • 400V
  • Leakage Current (Max)
  • 0.2mA
  • Current - On State (It (AV)) (Max)
  • 900mA
  • Non-Repetitive Pk On-state Cur
  • 27 A
  • SCR Type
  • Sensitive Gate
  • Voltage - On State (Vtm) (Max)
  • 1.8V
  • Critical Rate of Rise of Off-State Voltage-Min
  • 30V/us
  • Current - Off State (Max)
  • 5?A
  • Repetitive Peak Reverse Voltage
  • 400V
  • Holding Current-Max
  • 5mA
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST X0402DF 1AA2.

Datasheets:

X0402DF 1AA2 Overview


In this device, the repetitive peak off-state voltage is 400V. This is the maximum voltage allowed across the device.Insulation effectiveness can be evaluated by leakage current, and 0.2mA is its maximum leakage current.

X0402DF 1AA2 Features


the repetitive peak off-state voltage of this device is 400V
its maximal leakage current can be 0.2mA


X0402DF 1AA2 Applications


There are a lot of STMicroelectronics
X0402DF 1AA2 applications of SCRs thyristors.


  • DC motor control and drives
  • Battery charges
  • Welders
  • Power converters
  • Lighting control
  • Heat and temperature control
  • Motor starters
  • DC motor controls - AC motor controls
  • Uninterruptable power supplies
  • Wind mill
