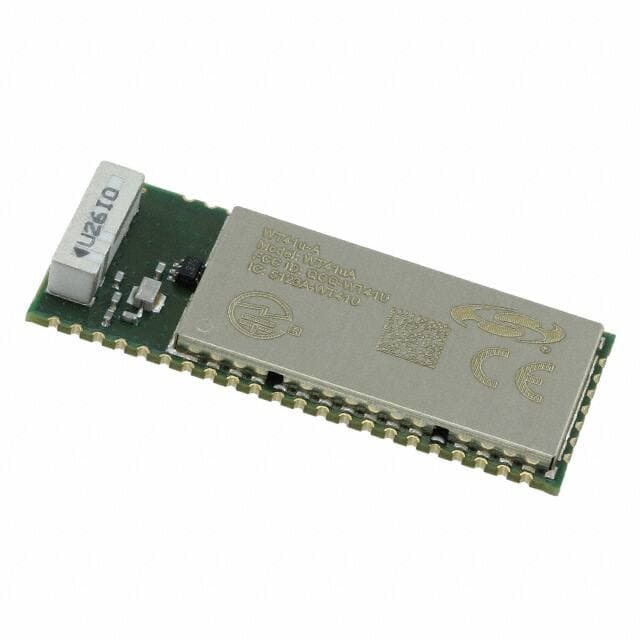

SKYWORKS WT41U-A-AI56
Manufacturer No:
WT41U-A-AI56
Manufacturer:
Package:
Module
Description:
2.4GHz Bluetooth -40°C~85°C 3.3V SPI, UART, USB Tape & Reel (TR) Integrated, Chip 3 Mbps 17dBm Bluetooth v2.1 + EDR -94dBm Module
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 49.960000 | $ 49.960000 |
| 10 | $ 49.660000 | $ 496.600000 |
| 25 | $ 49.360000 | $ 1234.000000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
WT41U-A-AI56 information
SKYWORKS WT41U-A-AI56 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS WT41U-A-AI56.
| Type | Parameter |
|---|---|
| Factory Lead Time | 12 Weeks |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Surface Mount | YES |
| Operating Temperature | -40°C~85°C |
| Packaging | Tape & Reel (TR) |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 59 |
| Additional Feature | PITCH TAKEN FROM RECOMMENDED LAND PATTERN |
| HTS Code | 8542.39.00.01 |
| Voltage - Supply | 3.3V |
| Terminal Position | QUAD |
| Terminal Form | NO LEAD |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 1 |
| Terminal Pitch | 1.5mm |
| Frequency | 2.4GHz |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| JESD-30 Code | R-XQMA-N59 |
| Supply Voltage-Max (Vsup) | 3.6V |
| Supply Voltage-Min (Vsup) | 3V |
| Data Rate | 3 Mbps |
| Type | Parameter |
|---|---|
| Power - Output | 17dBm |
| RF Family/Standard | Bluetooth |
| Antenna Type | Integrated, Chip |
| Consumer IC Type | CONSUMER CIRCUIT |
| Sensitivity | -94dBm |
| Serial Interfaces | SPI, UART, USB |
| Current - Receiving | 44mA |
| Current - Transmitting | 85mA |
| Length | 35.3mm |
| Height Seated (Max) | 2.45mm |
| Width | 14mm |
| RoHS Status | Non-RoHS Compliant |
