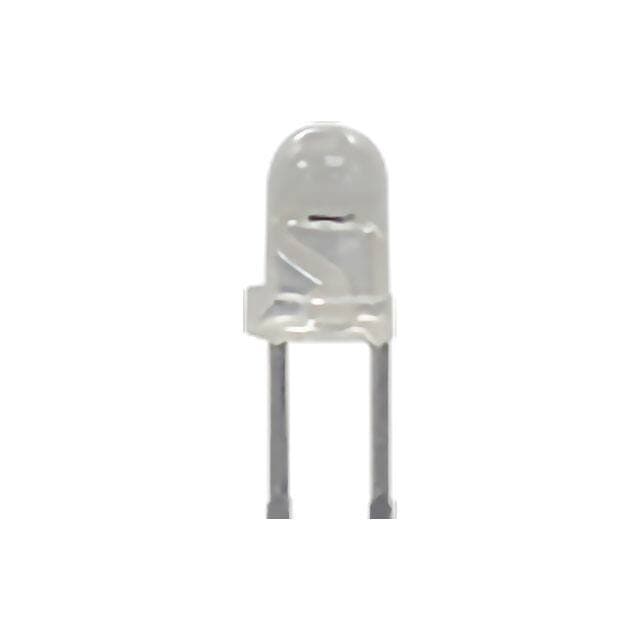

Kingbright WP3DPD1C

Manufacturer No:

WP3DPD1C

Manufacturer:

Kingbright

Package:

Radial

Description:

Through Hole -40°C~85°C Bulk Wavelength: 940nm Radial 170V 6ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WP3DPD1C information

Kingbright WP3DPD1C technical specifications, attributes, parameters and parts with similar specifications to Kingbright WP3DPD1C.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Through Hole

Package / Case
Radial

Operating Temperature
-40°C~85°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Diode Type
PIN

Viewing Angle
50°

Response Time
6ns

Voltage - DC Reverse (Vr) (Max)
170V

Wavelength
940nm

Spectral Range
420nm ~ 1120nm

Current - Dark (Typ)
10nA Max

Color - Enhanced
Infrared (NIR)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Kingbright WP3DPD1C.

WP3DPD1C Overview

In order to protect these photodiodes from damage, they are packaged in the Bulk. It is necessary to place the photodiodes into Radial packages in order to protect them from damage. A continuous reverse-bias mode can only sustain 170V voltage per photodiode.

WP3DPD1C Features

Moisture Sensitivity Level (MSL): Not Applicable
Operating Temperature: -40°C~85°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 420nm ~ 1120nm
Response Time: 6ns
Viewing Angle: 50°

WP3DPD1C Applications

There are a lot of Kingbright
WP3DPD1C Photodiodes applications.

Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
