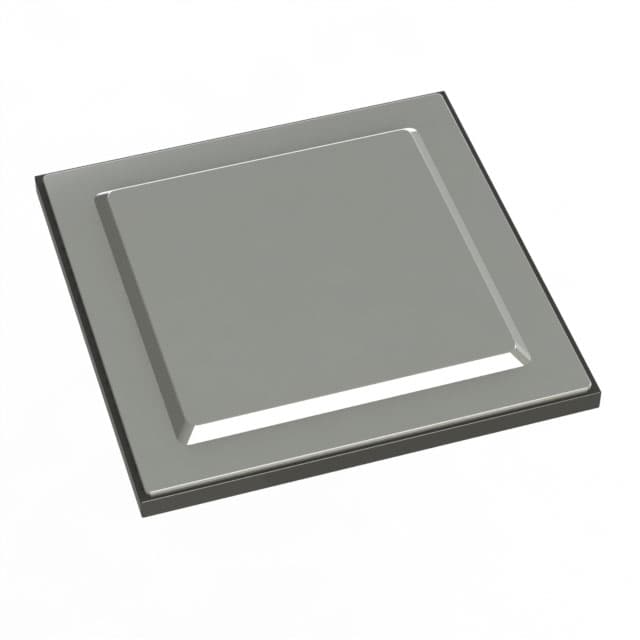

Microchip WP3161W6NFEI-320B1

Manufacturer No:

WP3161W6NFEI-320B1

Manufacturer:

Microchip

Package:

896-BGA, FCBGA

Description:

WinPath3 SuperLite Network Processors

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WP3161W6NFEI-320B1 information

Microchip WP3161W6NFEI-320B1 technical specifications, attributes, parameters and parts with similar specifications to Microchip WP3161W6NFEI-320B1.

Type
Parameter

Category
Integrated Circuits (ICs)

Manufacturer
Microchip Technology

Packaging
Tray

Part Status
Active

Manufacturer Lead Time
12 Weeks

Applications
Network Processor

Controller Series
-

Core Processor
MIPS32® 34Kc™

DigiKey Programmable
Not Verified

Interface
I2C, RMII, UART

Mounting Type
Surface Mount

Operating Temperature
-

Package / Case
672-BBGA

Program Memory Type
SRAM

RAM Size
-

Supplier Device Package
672-FCBGA (27x27)

Voltage - Supply
-

ExportControlClassNumber
5A991G

HtsusCode
8542.31.0030

MoistureSensitivityLevel
3 (168 Hours)

ReachStatus
REACH Unaffected

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip WP3161W6NFEI-320B1.

Microchip's WinPath3-SuperLite (WP3-SL) provides a powerful, yet lower cost WinPath3 solution for access processing in the access infrastructure and CPE (customer premises equipment) market. This new family of devices leverages Microchip's broad portfolio of hardened market-ready protocols and industry preferred I/O interfaces and provides this solution in devices priced less than previous WinPath devices. It has the same processing elements as the WinPath3, but a reduced number (six) running up to 400 MHz. These processing elements support the latest packet based protocols such as Ethernet, PWE3 (for Ethernet TDM, HDLC, ATM), and Packet Network Synchronization (IEEE1588v2, Synchronous Ethernet, adaptive and differential clock recovery). It also supports ML-PPP, IMA, CES, OAM (for Ethernet and ATM), QoS (policing, shaping, per-flow queuing, WRED), plus many other protocols. The WP3-SL incorporates the new WinPath3 hardware accelerators such as a flexible high performance classifier, a hierarchical shaper, an integrated security engine and more. The WP3-SL family broadens the Microchip solution to include a high performance yet lower cost option providing WinPath users a program of minimum design risk and short time to market.

A sophisticated multi-core communication engine with a large internal program RAM for data path processing
General-purpose MIPS 34K processor provides on-board control path software processing
6 Gigabit Ethernet, 24 Fast Ethernet, 16 TDM
The Hardware Shaper implements 3-level shaping over up to 4K queues
The IPSec accelerator supports up to 1 Gbps data encryption and authentication
The Policing Accelerator supports single and dual leaky bucket policing
Growing list of available data path software supporting interworking, QoS, and Layer 2/3 protocols such as VPWS, VPLS, L3VPN
27mm x 27mm FCBGA
