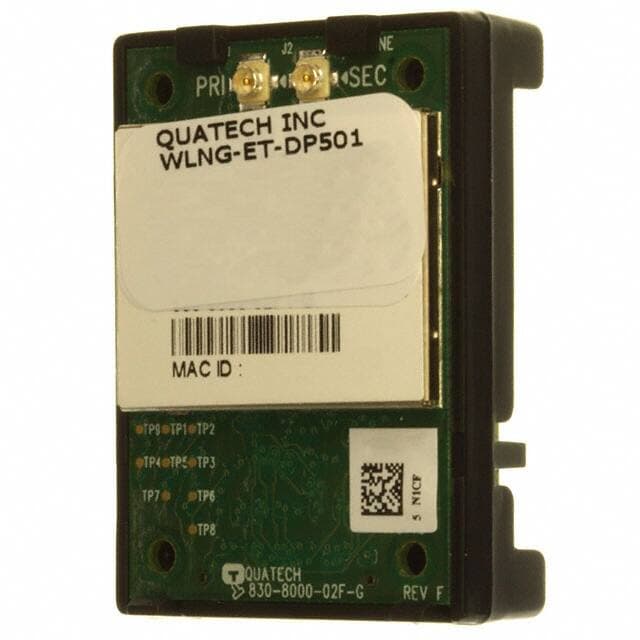

Quatech-Division of B&B Electronics WLNG-ET-DP501

Manufacturer No:

WLNG-ET-DP501

Manufacturer:

Quatech-Division of B&B Electronics

Package:

Module

Description:

2.4GHz WiFi -40°C~85°C 3.3V Ethernet Bulk Antenna Not Included, U.FL 54Mbps 802.11b/g -87dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WLNG-ET-DP501 information

Quatech-Division of B&B Electronics WLNG-ET-DP501 technical specifications, attributes, parameters and parts with similar specifications to Quatech-Division of B&B Electronics WLNG-ET-DP501.

Type
Parameter

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Module

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
Airborne?

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
3.3V

Frequency
2.4GHz

Interface
Ethernet

Data Rate
54Mbps

Protocol
802.11b/g

RF Family/Standard
WiFi

Antenna Type
Antenna Not Included, U.FL

Sensitivity
-87dBm

Serial Interfaces
Ethernet

Current - Receiving
420mA

Current - Transmitting
620mA

Modulation
16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Sensitivity (dBm)
-87 dBm

Download datasheets and manufacturer documentation for Quatech-Division of B&B Electronics WLNG-ET-DP501.

Datasheets:

quatechdivisionofbbelectronics-wlngandp501-datasheets-2732.pdf

WLNG-ET-DP501 Overview

This RF Transceiver' mounting method is Chassis Mount.For optimal performance, this RF Transceiver module uses the Bulk package.As long as its operating temperature is -40°C~85°C, Transceiver should perform well.The RF Transceiver Module belongs to the Airborne? family.RF Transceiver can supply voltages up to 3.3V.At 2.4GHz, the RF Transceiver Module operates.With the Chassis Mount mounted, this Transceiver is widely used in a wide range of applications.

WLNG-ET-DP501 Features

Chassis Mount
Bulk package
3.3V volts

WLNG-ET-DP501 Applications

There are a lot of Quatech-Division of B&B Electronics
WLNG-ET-DP501 RF Transceiver Modules applications.

Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
Thermostats
Smart Meters

User Guide
