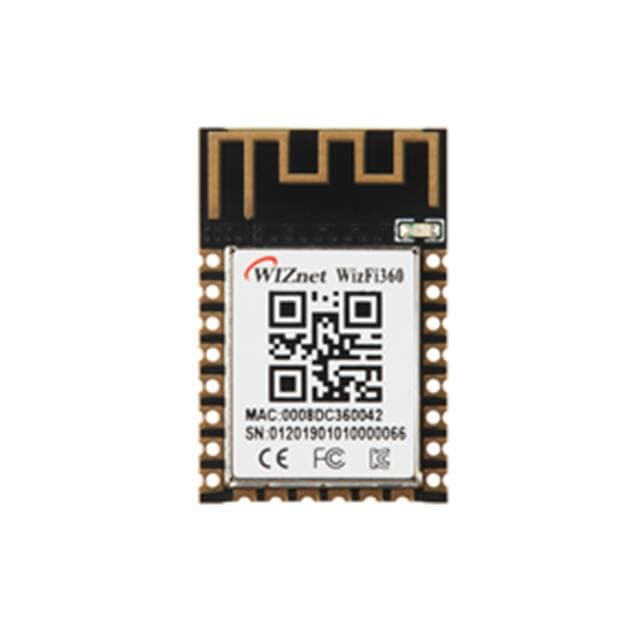

WIZnet WIZFI360-PA

Manufacturer No:

WIZFI360-PA

Manufacturer:

WIZnet

Package:

Module

Description:

2.4GHz~2.4835GHz WiFi -40°C~85°C 3V~3.6V UART Integrated, Trace 72.2Mbps 19dBm 802.11b/g/n -95dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WIZFI360-PA information

WIZnet WIZFI360-PA technical specifications, attributes, parameters and parts with similar specifications to WIZnet WIZFI360-PA.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Surface Mount

Package / Case
Module

Operating Temperature
-40°C~85°C

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
3V~3.6V

Frequency
2.4GHz~2.4835GHz

Data Rate
72.2Mbps

Protocol
802.11b/g/n

Power - Output
19dBm

RF Family/Standard
WiFi

Antenna Type
Integrated, Trace

Sensitivity
-95dBm

Serial Interfaces
UART

Current - Receiving
110mA

Current - Transmitting
230mA

Modulation
CCK, DSSS, OFDM

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for WIZnet WIZFI360-PA.

WIZFI360-PA Overview

In order to mount the RF Transceiver, Surface Mount is used.In order for it to operate properly, Transceiver's operating temperature should be at -40°C~85°C.RF Transceivers that can supply 3V~3.6V volts are available.A 2.4GHz~2.4835GHz frequency is used by the RF Transceiver Module.

WIZFI360-PA Features

Surface Mount
3V~3.6V volts

WIZFI360-PA Applications

There are a lot of WIZnet
WIZFI360-PA RF Transceiver Modules applications.

Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
Thermostats
