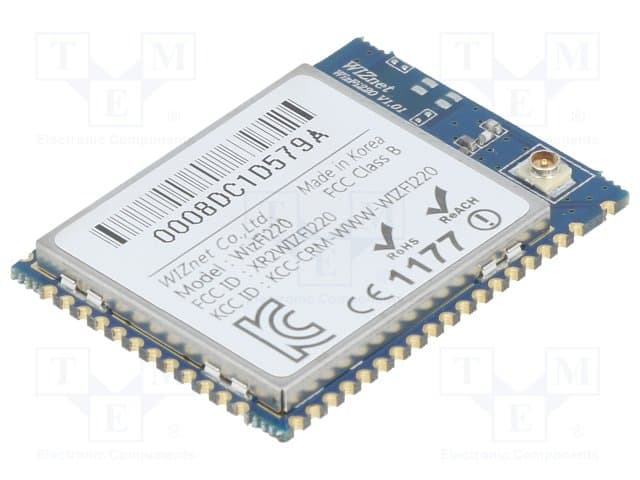

WIZnet WIZFI220-CON
Manufacturer No:
WIZFI220-CON
Manufacturer:
Package:
49-SMD Module
Description:
2.4GHz~2.497GHz WiFi -40°C~85°C 3V~3.6V SPI, UART Integrated, Chip + U.FL 11Mbps 17dBm 802.11b -94dBm 49-SMD Module
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
WIZFI220-CON information
WIZnet WIZFI220-CON technical specifications, attributes, parameters and parts with similar specifications to WIZnet WIZFI220-CON.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 49-SMD Module
- Operating Temperature
- -40°C~85°C
- Published
- 2013
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Voltage - Supply
- 3V~3.6V
- Frequency
- 2.4GHz~2.497GHz
- Data Rate
- 11Mbps
- Protocol
- 802.11b
- Power - Output
- 17dBm
- RF Family/Standard
- WiFi
- Antenna Type
- Integrated, Chip + U.FL
- Sensitivity
- -94dBm
- Serial Interfaces
- SPI, UART
- Current - Receiving
- 135mA
- Current - Transmitting
- 250mA
- Modulation
- CCK, DSSS
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for WIZnet WIZFI220-CON.
WIZFI220-CON Overview
RF Transceiver' mounting is done according to the Surface Mount method.Operating at -40°C~85°C is the recommended temperature for Transceiver's operation.RF Transceivers with 3V~3.6V voltage capabilities can be used.2.4GHz~2.497GHz is the frequency of the RF Transceiver Module.
WIZFI220-CON Features
Surface Mount
3V~3.6V volts
WIZFI220-CON Applications
There are a lot of WIZnet
WIZFI220-CON RF Transceiver Modules applications.
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
