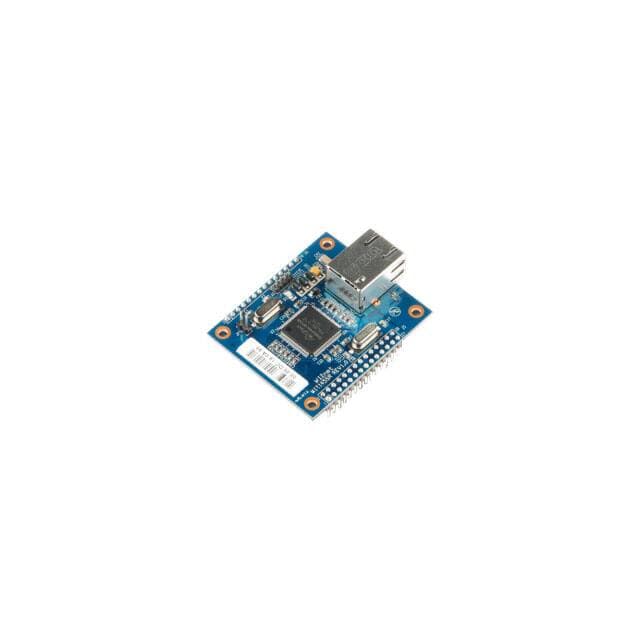

WIZnet WIZ145SR

Manufacturer No:

WIZ145SR

Manufacturer:

WIZnet

Package:

Module

Description:

TTL Controller 10/100 Base-T/TX PHY Ethernet 46 Pins 3.3V Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WIZ145SR information

WIZnet WIZ145SR technical specifications, attributes, parameters and parts with similar specifications to WIZnet WIZ145SR.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Screw

Package / Case
Module

Number of Pins
46

Operating Temperature
0°C~70°C

Published
2010

Part Status
Active

Function
Controller

Operating Supply Voltage
3.3V

Interface
TTL

Operating Supply Current
250mA

Max Supply Current
250mA

Data Rate
115.2 kbps

Protocol
Ethernet

Number of Transceivers
2

Standards
10/100 Base-T/TX PHY

Length
58mm

Width
48.26mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for WIZnet WIZ145SR.

Datasheets:

wiznet-wiz140sr-datasheets-2166.pdf

wiznet-wiz140sr-datasheets-2167.pdf

Environmental Information:

wiznet-wizfi250h-environmentalinformation-5899.pdf

WIZ145SR Overview

It comes in a Module package.The interface of the interface module is TTL.The equipment interface module is set to operate at 0°C~70°C.The interface module runs in Controller function.The pin number for the accessory protocol interface module stays at 46.Operating off a supply voltage of 3.3V, this DC DC switching regulator.The supply current of the equipment interface module is set to 250mA.It's included in the Screw mount.

WIZ145SR Features

Functions of Controller
46 pins
3.3V channels
Mount of Screw

WIZ145SR Applications

There are a lot of WIZnet
WIZ145SR Interface Module applications.

PLC
Components
Servo drive controllers
Relays
Control cabinet
I/O connectors
Backplane
board-to-board
Cable connections
Cable crimp

User Guide

PURCHASE
