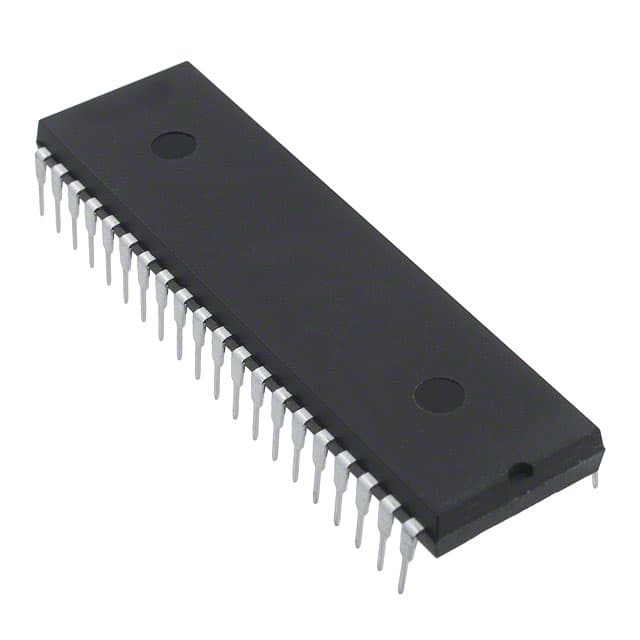

NUVOTON W78E058DDG

Manufacturer No:

W78E058DDG

Manufacturer:

NUVOTON

Package:

40-DIP

Description:

32KB 32K x 8 FLASH 8052 8-Bit Microcontroller W78 Series 40 Pin 40MHz 3.3V 40-DIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

W78E058DDG information

NUVOTON W78E058DDG technical specifications, attributes, parameters and parts with similar specifications to NUVOTON W78E058DDG.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
40-DIP

Number of Pins
40

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Series
W78

Published
2007

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
40

Technology
CMOS

Terminal Position
DUAL

Supply Voltage
3.3V

Terminal Pitch
2.54mm

Frequency
40MHz

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.4V

Interface
EBI/EMI, UART, USART

Memory Size
32kB

Oscillator Type
External

Number of I/O
32

Voltage - Supply (Vcc/Vdd)
2.4V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
8052

Peripherals
POR, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
32KB 32K x 8

Connectivity
EBI/EMI, UART/USART

Supply Current-Max
0.05mA

Bit Size
8

Has ADC
NO

DMA Channels
NO

PWM Channels
NO

DAC Channels
NO

Number of Timers/Counters
3

Address Bus Width
16

On Chip Program ROM Width
8

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
8

Format
FIXED POINT

Integrated Cache
NO

RAM (words)
512

Download datasheets and manufacturer documentation for NUVOTON W78E058DDG.

W78E058DDG Overview

There is a 40-DIP package available. The board has 32 I/Os. Using the Mounting Type Through Hole, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. W78-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 32KB 32K x 8. Powered by a 8052 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 40. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3.3V volts. A total of NO DMA channels are available. This IC part has a memory size of 32kB. Performing well when operated at frequency 40MHz can be achieved. Using NO PWM channels, the device works. On the chip, there are 40 pins that can be accessed. It comes with 3 timers/counters that can be set up. It contains 1 serial input/output interfaces on the board. The part contains 2 interrupts external to the system.
