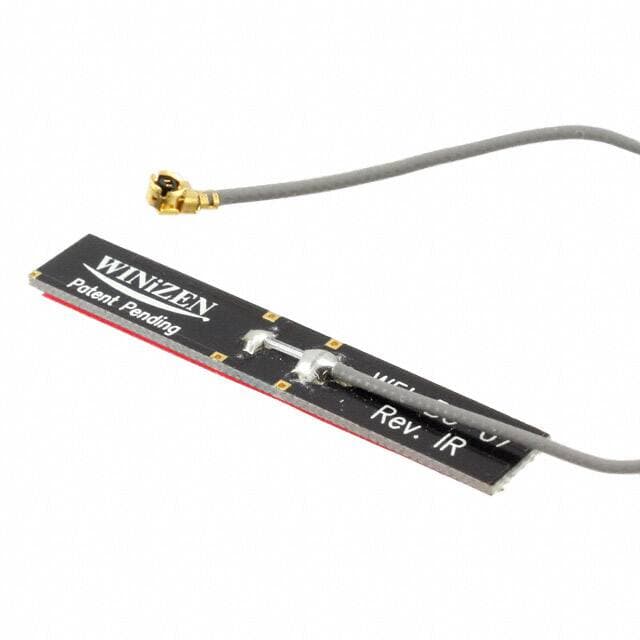

WIZnet W5I-BO-07

Manufacturer No:

W5I-BO-07

Manufacturer:

WIZnet

Package:

Module

Description:

1 Bands PCB Trace UHF 2GHz~3GHz Adhesive U.FL (UMCC), IPEX MHF1 2.4GHz 2.5dBi Bulk Bluetooth, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

W5I-BO-07 information

WIZnet W5I-BO-07 technical specifications, attributes, parameters and parts with similar specifications to WIZnet W5I-BO-07.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Adhesive

Package / Case
Module

Packaging
Bulk

Published
2010

Feature
Cable - 130mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
Bluetooth, WLAN, Zigbee?

Frequency
2.4835GHz

Cable Length
130mm

Gain
2.5dBi

Frequency Range
2.4GHz~2.483GHz

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
PCB Trace

VSWR
1.9

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.4GHz

Return Loss
-22.36dB

Height
762?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for WIZnet W5I-BO-07.

Environmental Information:

wiznet-wizfi250h-environmentalinformation-5899.pdf

W5I-BO-07 Overview

As it has a Adhesive value, it can be used for general RF Antennas.There is a Bulk solid enclosure around the RF modulator.Because of its Surface Mount, it is suitable for most RF ic.This RF ic is conveniently packaged in Module, making it easy to ship abroad.

W5I-BO-07 Features

With Adhesive

W5I-BO-07 Applications

There are a lot of WIZnet
W5I-BO-07 RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
