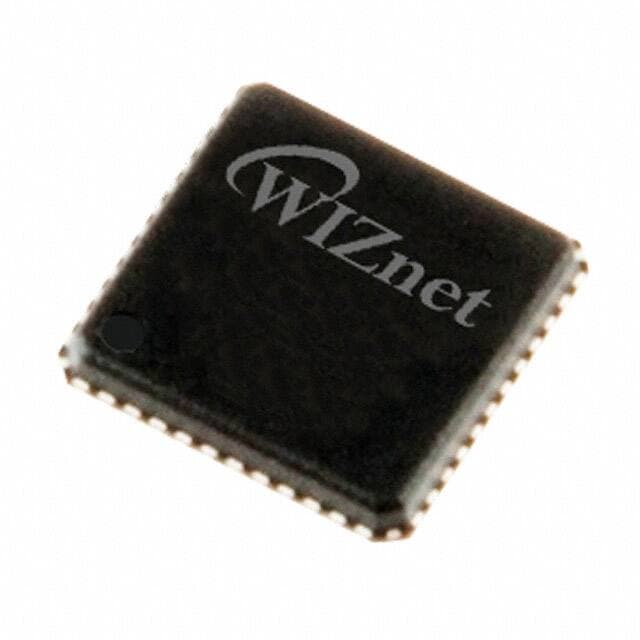

WIZnet W5200

Manufacturer No:

W5200

Manufacturer:

WIZnet

Package:

48-VFQFN Exposed Pad

Description:

2.97V~3.63V 10/100 Base-T/TX PHY SPI Controllers Interface ICs 48 Pins Controller 48-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

W5200 information

WIZnet W5200 technical specifications, attributes, parameters and parts with similar specifications to WIZnet W5200.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Package / Case
48-VFQFN Exposed Pad

Number of Pins
48

Weight
150.507618mg

Operating Temperature
-40°C~85°C

Packaging
Cut Tape (CT)

Published
2007

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Power Dissipation
528mW

Voltage - Supply
2.97V~3.63V

Function
Controller

Operating Supply Voltage
3.3V

Number of Channels
8

Interface
SPI

Operating Supply Current
5?A

Max Supply Current
5?A

Data Rate
100 Mbps

Protocol
Ethernet

Standards
10/100 Base-T/TX PHY

Height
700?m

Length
7mm

Width
7mm

Lead Free
Lead Free

Download datasheets and manufacturer documentation for WIZnet W5200.

W5200 Overview

It can be found in the 48-VFQFN Exposed Pad package that you can download. Easy-to-carry Cut Tape (CT)-shaped packaging. It is important to regulate the temperature to -40°C~85°C in order to ensure reliable operation. You should be able to use it as long as you use 2.97V~3.63VV power. 48 pins are needed for operation. The gadget's supply current is set to 5?A. The supply voltage should be set to 3.3V for maximum efficiency. Currently, there are 8 channels available on the internet. For it to function, 5?A is the greatest current required.
