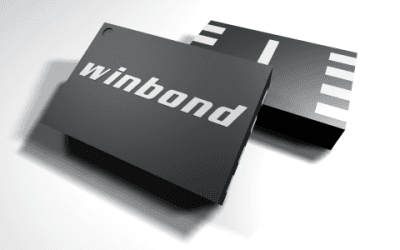

WINBOND W25Q80DVUXIE

Manufacturer No:

W25Q80DVUXIE

Manufacturer:

WINBOND

Package:

Description:

3/3.3 V V Memory IC 8Mb kb 3 mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

W25Q80DVUXIE information

WINBOND W25Q80DVUXIE technical specifications, attributes, parameters and parts with similar specifications to WINBOND W25Q80DVUXIE.

Type
Parameter

Surface Mount
YES

Number of Terminals
8

Package Description
HVSON, SOLCC8,.12,20

Package Style
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

Number of Words Code
8000000

Package Body Material
PLASTIC/EPOXY

Package Equivalence Code
SOLCC8,.12,20

Operating Temperature-Min
-40 °C

Reflow Temperature-Max (s)
NOT SPECIFIED

Operating Temperature-Max
85 °C

RoHS Status
RoHS Compliant

Manufacturer Part Number
W25Q80DVUXIE

Clock Frequency-Max (fCLK)
104 MHz

Number of Words
8388608 words

Supply Voltage-Nom (Vsup)
3 V

Package Code
HVSON

Package Shape
RECTANGULAR

Manufacturer
Winbond Electronics Corp

Part Life Cycle Code
Active

Ihs Manufacturer
WINBOND ELECTRONICS CORP

Risk Rank
5.28

Dimensions
2X3mm2

Package
USON - 8

Type
NOR TYPE

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.5 mm

Reach Compliance Code
compliant

Frequency
80MHz

JESD-30 Code
R-PDSO-N8

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6 V

Power Supplies
3/3.3 V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.7 V

Voltage
2.7 ~ 3.6V

Operating Mode
SYNCHRONOUS

Supply Current-Max
0.025 mA

Organization
8MX1

Seated Height-Max
0.6 mm

Memory Width
1

Density
8Mb

Standby Current-Max
0.000005 A

Memory Density
8388608 bit

Download datasheets and manufacturer documentation for WINBOND W25Q80DVUXIE.

Product Description

The Winbond W25Q80DVUXIE is a high-performance, industrial-grade, 8M-bit (1M x 8-bit) serial Flash memory IC. This device is designed for use in a wide range of applications, including embedded systems, consumer electronics, and industrial control systems. With its small outline, heat sink/slug, and very thin profile, the W25Q80DVUXIE is ideal for space-constrained designs.

Features

8M-bit (1M x 8-bit) serial Flash memory
Industrial temperature grade (-40°C to 85°C)
Synchronous serial interface (SPI) for high-speed data transfer
100,000 write/erase cycles endurance
Hardware and software write protection
3V to 3.6V supply voltage range
Low standby current (0.000005A)
Small outline package (HVSON) with a very thin profile

Applications

Embedded systems
Consumer electronics
Industrial control systems
Automotive applications
Medical devices

Alternative Parts

W25Q64DVUXIE (64M-bit serial Flash memory)
W25Q32DVUXIE (32M-bit serial Flash memory)
W25Q16DVUXIE (16M-bit serial Flash memory)

Embedded Modules

Various embedded systems and microcontrollers from leading manufacturers

Frequently Asked Questions

Q: What is the maximum clock frequency of the W25Q80DVUXIE? A: The maximum clock frequency is 104 MHz.

Q: What is the supply voltage range of the W25Q80DVUXIE? A: The supply voltage range is 2.7V to 3.6V.

Q: What is the data retention time of the W25Q80DVUXIE? A: The data retention time is at least 20 years.

Q: Is the W25Q80DVUXIE RoHS compliant? A: Yes, the W25Q80DVUXIE is RoHS compliant.

Q: What is the package shape of the W25Q80DVUXIE? A: The package shape is rectangular.

Q: What is the technology used in the W25Q80DVUXIE? A: The technology used is CMOS.
