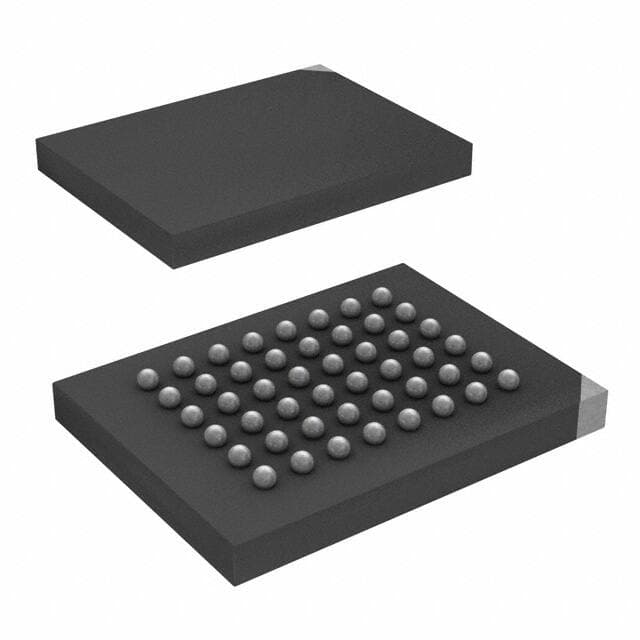

WINBOND W19B320ATB7H

Manufacturer No:

W19B320ATB7H

Manufacturer:

WINBOND

Package:

48-TFBGA

Description:

3/3.3V V 48 Pin Memory IC 8mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

W19B320ATB7H information

WINBOND W19B320ATB7H technical specifications, attributes, parameters and parts with similar specifications to WINBOND W19B320ATB7H.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
48-TFBGA

Surface Mount
YES

Operating Temperature
-20°C~85°C TA

Packaging
Tray

Published
2005

JESD-609 Code
e1

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
3A991.B.1.A

Terminal Finish
TIN SILVER COPPER

HTS Code
8542.32.00.51

Technology
CMOS

Voltage - Supply
2.7V~3.6V

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.8mm

Reach Compliance Code
unknown

Frequency
70GHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
48

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3/3.3V

Supply Voltage-Min (Vsup)
2.7V

Memory Size
32Mb 4M x 8 2M x 16

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Supply Current-Max
0.045mA

Memory Format
FLASH

Memory Interface
Parallel

Organization
2MX16

Memory Width
16

Write Cycle Time - Word, Page
70ns

Standby Current-Max
0.000005A

Memory Density
33554432 bit

Access Time (Max)
70 ns

Programming Voltage
3V

Alternate Memory Width
8

Data Polling
YES

Toggle Bit
YES

Command User Interface
YES

Number of Sectors/Size
863

Sector Size
8K64K

Download datasheets and manufacturer documentation for WINBOND W19B320ATB7H.

Datasheets:

winbondelectronics-w19b320atb7h-datasheets-0557.pdf

PCN Packaging:

winbondelectronics-w29n02gvsiaa-pcnpackaging-8034.pdf

W19B320ATB7H Overview

There is a memory type Non-Volatile for this type of device. The case comes in the Tray style. The file is embedded in a 48-TFBGA case. This chip has an 32Mb 4M x 8 2M x 16 size of memory on it, so a lot of data can be stored on it. Memory data is stored in FLASH-format, which is common in mainstream devices. -20°C~85°C TA is an extended operating temperature range, making this device ideal for demanding applications. A supply voltage of 2.7V~3.6V can be applied to it. There is a recommended mounting type of Surface Mount for it. The chip contains 48 terminations. As many as 1 functions are supported for comprehensive working. An 3V supply is required for this ic memory chip to operate properly. The memory device has 48 pins, which means that it has 48 memory locations, which indicates it is an 48-bit device. The power supply needed for this memory chip is only 3/3.3V . This device can be operated from a maximum supply current of 0.045mA under ideal conditions. 3V programming voltage is required to change the state of certain nonvolatile memory arrays. As a result of the frequency of this memory chip, data can be processed at a rate of 70GHz. It is important to keep in mind that this memory has 863 specific sized divisions in total.

W19B320ATB7H Features

Package / Case: 48-TFBGA
Freguency at 70GHz
70GHz terminals

W19B320ATB7H Applications

There are a lot of Winbond Electronics
W19B320ATB7H Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
