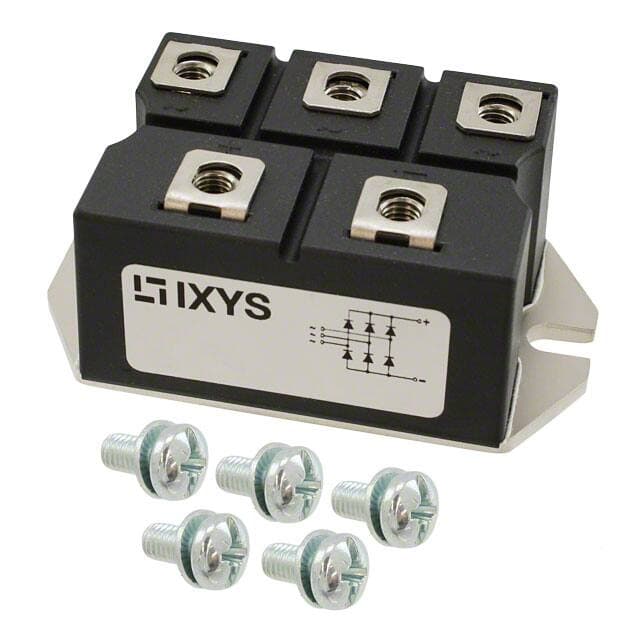

LITTELFUSE VUO82-14NO7
LITTELFUSE VUO82-14NO7

LITTELFUSE VUO82-14NO7

Manufacturer No:

VUO82-14NO7

Manufacturer:

LITTELFUSE

Package:

PWS-D

Description:

Three Phase Bridge Rectifier Standard Chassis Mount -40°C~150°C TJ 300?A @ 1400V 1.6V @ 150A 5-Termination 3-Phase PWS-D Bulk

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VUO82-14NO7 information

LITTELFUSE VUO82-14NO7 technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE VUO82-14NO7.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Chassis Mount, Screw
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • PWS-D
  • Number of Pins
  • 5
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Bulk
  • Published
  • 2000
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Additional Feature
  • UL RECOGNIZED
  • Subcategory
  • Bridge Rectifier Diodes
  • Technology
  • Standard
  • Terminal Position
  • UPPER
  • Terminal Form
  • UNSPECIFIED
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • VUO82
  • Pin Count
  • 5
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Diode Type
  • Three Phase
  • Current - Reverse Leakage @ Vr
  • 300?A @ 1400V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.6V @ 150A
  • Case Connection
  • ISOLATED
  • Max Reverse Leakage Current
  • 300?A
  • Max Surge Current
  • 750A
  • Forward Voltage
  • 1.35V
  • Average Rectified Current
  • 88A
  • Number of Phases
  • 3
  • Peak Reverse Current
  • 100?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1.4kV
  • Peak Non-Repetitive Surge Current
  • 810A
  • Non-rep Pk Forward Current-Max
  • 740A
  • Height
  • 30mm
  • Length
  • 72mm
  • Width
  • 42mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE VUO82-14NO7.

Datasheets:

VUO82-14NO7 Overview


Bridge rectifier is equipped wBridge rectifierh 5 pin count.There are a number of related parts that can be identified using the base part number VUO82.Basically, rectifier is a type of electronic component that is available in a PWS-D package.There should be a monrectifieroring of the reverse leakage current and rectifier should not be allowed to exceed 300?A.The mounting method of the device is Chassis Mount, Screw.Operating at the temperature of -40°C~150°C TJ ensures its normal operation.Surge current should be monitored and not be allowed to exceed 750A.There is a peak reverse voltage of 100?A which is used to power this device.

VUO82-14NO7 Features


5 pin count
PWS-D package
operating at a temperature of -40°C~150°C TJ
peak reverse voltage of 100?A
a reverse voltage peak of 100?A


VUO82-14NO7 Applications


There are a lot of IXYS
VUO82-14NO7 applications of bridge rectifiers.


  • Controlled avalanche characteristics
  • Working peak reverse voltages 200 to 1 ,000 volts
  • Military and other high-reliability applications
  • High forward surge current capability
  • Low thermal resistance
  • Extremely robust construction
  • Fuse-in-glass diodes design
  • Electrically isolated aluminum case
  • Motor controls ? Low Voltage and Medium Voltage converters
  • SCR power bridges for solid state starters
