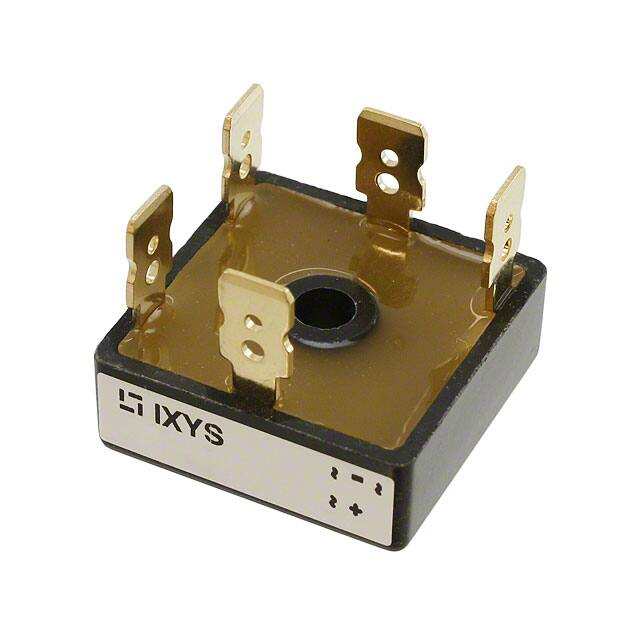

LITTELFUSE VUO25-12NO8

Manufacturer No:

VUO25-12NO8

Manufacturer:

LITTELFUSE

Package:

5-Square, FO-B

Description:

Three Phase Bridge Rectifier Standard QC Terminal -40°C~150°C TJ 300?A @ 1200V 2.2V @ 150A 5-Termination 3-Phase 5-Square, FO-B Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VUO25-12NO8 information

LITTELFUSE VUO25-12NO8 technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE VUO25-12NO8.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Screw

Mounting Type
QC Terminal

Package / Case
5-Square, FO-B

Number of Pins
5

Diode Element Material
SILICON

Operating Temperature
-40°C~150°C TJ

Packaging
Bulk

Published
2008

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Terminal Finish
Gold (Au) - with Nickel (Ni) barrier

Additional Feature
UL RECOGNIZED

Subcategory
Bridge Rectifier Diodes

Technology
Standard

Terminal Position
UPPER

Terminal Form
SOLDER LUG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
VUO25

Pin Count
5

Number of Elements
1

Element Configuration
Single

Diode Type
Three Phase

Current - Reverse Leakage @ Vr
300?A @ 1200V

Power Dissipation
15W

Voltage - Forward (Vf) (Max) @ If
2.2V @ 150A

Case Connection
ISOLATED

Forward Current
25A

Max Reverse Leakage Current
1.5mA

Max Surge Current
380A

Forward Voltage
2.2V

Average Rectified Current
25A

Number of Phases
3

Peak Reverse Current
300?A

Max Repetitive Reverse Voltage (Vrrm)
1.2kV

Peak Non-Repetitive Surge Current
400A

Max Forward Surge Current (Ifsm)
400A

Height
10mm

Length
28.5mm

Width
28.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LITTELFUSE VUO25-12NO8.

Datasheets:

ixys-vuo2512no8-datasheets-9932.pdf

VUO25-12NO8 Overview

Pin count is 5.In this device, the forward voltage is 25A.VUO25 refers to a base part number that can be used to identify several related parts.Bridge rectifier is a type of electronic component that is available in a 5-Square, FO-B package.A monitoring should be done of the reverse leakage current and it should not be allowed to exceed zero.Bridge rectifier is mounted using the Screw method.Temperatures below -40°C~150°C TJ ensure normal operation.Monitoring surge current and not allowing it to exceed 380A is essential.Due to its primary action, this electronic or electrical device produces 0 heat (energy loss or waste).Powering this device is provided by a reverse voltage peak of 300?A.

VUO25-12NO8 Features

5 pin count
25A forward voltage
forward voltage of 25A
5-Square, FO-B package
operating at a temperature of -40°C~150°C TJ
peak reverse voltage of 300?A
a reverse voltage peak of 300?A

VUO25-12NO8 Applications

There are a lot of IXYS
VUO25-12NO8 applications of bridge rectifiers.

Extremely robust construction
Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls ? Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
Transportation ? Traction rectifiers and auxiliary rectifiers
Inductive heating ? Input rectifiers
