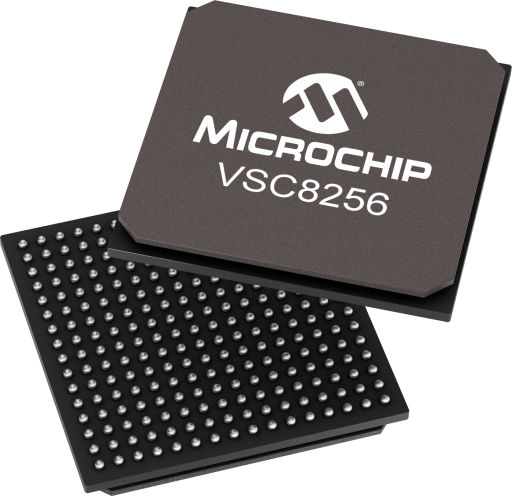

Microchip VSC8256YMR-01

Manufacturer No:

VSC8256YMR-01

Manufacturer:

Microchip

Package:

256-BBGA, FCBGA

Description:

VSC8256 is a quad channel 1G/10G serial-to-serial, protocol-agnostic repeater/retimer that is ideal for a wide array of board-level signal integrity applications.

Quantity:

In Stock :4518

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Fri, May 8 - Sat, May 9, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

VSC8256YMR-01 Information

Microchip VSC8256YMR-01 technical specifications, attributes, parameters and parts with similar specifications to Microchip VSC8256YMR-01.

Type
Parameter

Automotive
No

DownstreamPorts
4

Energy Efficient Ethernet
No

EtherCAT
No

Port Speed
10Gbps

Fiber Support
Yes

On-Chip Termination
No

InterfaceUpStream
XFI/SFI/KR

Internal Regulator
No

LinkMDCableDiag
Yes

Type
Parameter

MACsec
No

Supply Voltages
0

SyncE
Yes

Temperature Range Max
110

Temperature Range Min
-40

Digital I/O Voltage
1 (differential)

WakeonLAN
No

IEEE 1588 v2
No

Download datasheets and manufacturer documentation for Microchip VSC8256YMR-01.

VSC8256 is a quad 1G/10G serial-to-serial, protocol-agnostic repeater/retimer that integrates hardware-based host-side only 10GBASE-KR auto-negotiation and training in a small form factor, low-power FCBGA ideal for a wide array of board-level signal integrity applications. The quad channel VSC8256 device operates as a 10 GbE LAN, 10G WAN, 40 GbE (4 x 10G), as well as 1G legacy KR repeater with integrated cross-point switching enabling configurable line ordering for protection and broadcasting flexibility. Target applications for the VSC8256 device include switching, IP edge router connectivity, rack mount server access through backplane, fiber and copper cable connectivity, and standalone server access (in LAN on motherboard designs or separate network adapters). The VSC8256 device delivers excellent jitter attenuation with low power. It is also well-suited for SFP+ and QSFP+ based optical modules and direct attach copper cabling as well as challenging backplane interface applications. Its highly flexible clocking options support LAN and WAN operation using a single 156.25 MHz reference clock rate. Support for Synchronous Ethernet (SyncE) is also included.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Standards supported include IEEE 802.3ae, IEEE 802.3ap, SFF-8431, ITU-T G.8261, and ITU-T G.8262

Data rates supported include 10.3125 Gbps LAN mode, 9.95328 Gbps WAN mode, and 1.25 Gbps mode

Signal conditioner mode supports protocol agnostic data rates

Support for SFP+/QSFP+ line modules and 10GBASE-KR backplanes between 1.25 Gbps and 10.3125 Gbps (including host-side auto-negotiation and training)

Multi-port serial-to-serial signal conditioning

10GBASE-KR-compliant backplane transceivers

Multi-port XFI/KR to SFI/SFP+ 10 GbE switch cards, router cards, and network adapters

Compliant with IEEE 802.3-2012 and SFF-8431 electrical (SFI) specifications

9.95 Gbps WAN and 10.3 Gbps LAN operation, as well as 1.25 Gbps Ethernet support

Standard SFP+ and QSFP+ applications

10GBASE-KR (IEEE 802.3-2012) for 10G backplanes, including 1.25 Gbps and 10.3 Gbps auto-negotiation (host-side)

Adaptive equalization receiver and programmable multi-tap transmitter pre-emphasis
