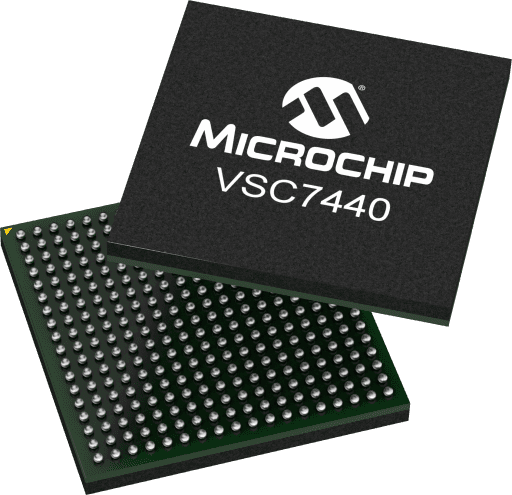

Microchip VSC7440XMT

Manufacturer No:

VSC7440XMT

Manufacturer:

Microchip

Package:

324-BGA

Description:

The VSC7440 SparX-IV-34 device is an SMB/SME Ethernet switch with up to 10 ports supporting a combination of 1G, 2.5G, and 10G Ethernet ports.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VSC7440XMT information

Microchip VSC7440XMT technical specifications, attributes, parameters and parts with similar specifications to Microchip VSC7440XMT.

Type
Parameter

Copper Support
10/100/1000 (2)

DownstreamPorts
10

Port Speed
10/100/1000/2500Mbps 10Gbps

Fiber Support
100FX 1000X SFI

IEEE 1588
Yes

InterfaceUpStream
SGMII 1000Base-T (2) XFI

LinkMDCableDiag
Yes

Managed
Yes

OpVoltage
1

Static MAC Address
16384

Supply Voltages
1

Temp Range Min (°C)
-40

Temp Range Max (°C)
125 (Junction)

Digital I/O Voltage
1.0/1.2/2.5

WakeonLAN
Yes

Download datasheets and manufacturer documentation for Microchip VSC7440XMT.

The next-generation switch family from Microchip delivers a flexible Enterprise and Industrial Ethernet solution.

The VSC7440 SparX-IV-34 device is an SMB/SME Ethernet switch with up to 10 ports supporting a combination of 1G, 2.5G, and 10G Ethernet ports.

The device provides a rich set of Enterprise Ethernet switching features. Using multistage Versatile TCAM technology (VCAP), it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing, and egress frame manipulation.

For industrial applications, VSC7440 integrates VeriTime, Microchip’s patent-pending timing technology that delivers the industry’s most accurate IEEE 1588v2 time stamping. Combined with the PTP software and an advanced Servo algorithm, offers the most accurate 1588 solution.

A powerful 500 MHz CPU enables full management of a Layer 2 and Layer 3 Ethernet switch solution.

A comprehensive application programming interface (API) and a software development package (SDK) accelerate time-to-market for managed Ethernet applications. The software API package integrates easily with third-party software, preserving existing software investments.

Supported Ethernet Software Options

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches

VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches

VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches

SparX-III GbE Switches with integrated copper PHYs

GE PHYs

Unified API, WebStaX, and SMBStaX software

Four 1G, four 1G/2.5G, and two 1G/2.5G/10G ports

Up to two integrated copper PHYs and two 10G SerDes

Fully-managed L2 switching and L3 forwarding features

Extended temperature range

Easy upgrade within the SparX-IV family to higher bandwidth (including 10 GbE port support)
