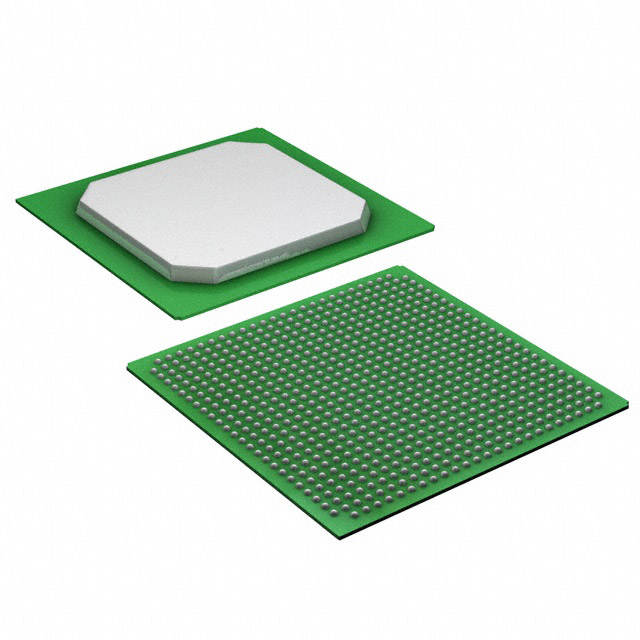

Microchip VSC7421XJG-04

Manufacturer No:

VSC7421XJG-04

Manufacturer:

Microchip

Package:

672-BGA

Description:

The VSC7421 is a fully integrated 17-port Gigabit Ethernet (GE) switch with 12 copper PHYs, and includes the most advanced IEEE 802.3az Energy Efficient Ethernet.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VSC7421XJG-04 information

Microchip VSC7421XJG-04 technical specifications, attributes, parameters and parts with similar specifications to Microchip VSC7421XJG-04.

Type
Parameter

Copper Support
10/100/1000 (12)

DownstreamPorts
17

Port Speed
10/100/1000/2500Mbps

Fiber Support
100FX 1000X

IEEE 1588
No

InterfaceUpStream
SGMII QSGMII 1000Base-T (12)

LinkMDCableDiag
Yes

Managed
No

OpVoltage
1

Static MAC Address
8192

Supply Voltages
1

Temp Range Min (°C)
-40

Temp Range Max (°C)
125 (Junction)

Digital I/O Voltage
1.0/1.2/2.5

WakeonLAN
Yes

Download datasheets and manufacturer documentation for Microchip VSC7421XJG-04.

The VSC7421 is the industry’s first fully integrated 17-port Gigabit Ethernet (GE) switch with 12 copper PHYs in a single package. In conjunction with VSC8514 4-port PHY with QSGMII, a 17-port switch can be designed using only two ICs. The VSC7421 leverages 65 nm technology, resulting in one of the most cost effective and lowest power consumption solutions in the industry. It includes the most advanced IEEE 802.3az Energy Efficient Ethernet features for bringing green technology solutions to market. A rich set of Ethernet switching features, such as Layer 2 forwarding with VLAN and QoS processing, enables the delivery of differentiated services. The VSC7421 contains an 8051 CPU. A comprehensive application software package is provided for LED control, loop indication, device overheat protection, and other enhanced functions.
