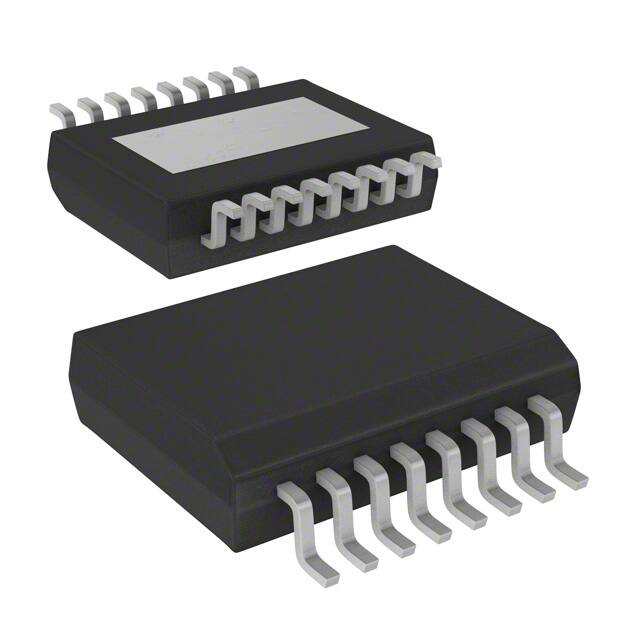

ST VNQ5E250AJ-E
Manufacturer No:
VNQ5E250AJ-E
Manufacturer:
Package:
16-PowerFSOP (0.154, 3.90mm Width)
Description:
8/28V N-Channel 0.5mm PMIC VIPower? Series VNQ5E250 16 Pin 16-PowerFSOP (0.154, 3.90mm Width)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
VNQ5E250AJ-E information
ST VNQ5E250AJ-E technical specifications, attributes, parameters and parts with similar specifications to ST VNQ5E250AJ-E.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 8 months ago)
- Factory Lead Time
- 18 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-PowerFSOP (0.154, 3.90mm Width)
- Number of Pins
- 16
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tube
- Series
- VIPower?
- JESD-609 Code
- e3
- Feature
- Auto Restart
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Resistance
- 250mOhm
- Terminal Finish
- Matte Tin (Sn) - annealed
- Subcategory
- Peripheral Drivers
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Terminal Pitch
- 0.5mm
- Base Part Number
- VNQ5E250
- Pin Count
- 16
- Max Output Current
- 5A
- Power Supplies
- 8/28V
- Interface
- On/Off
- Current - Output (Max)
- 3.5A
- Nominal Supply Current
- 2?A
- Output Configuration
- High Side
- Voltage - Supply (Vcc/Vdd)
- Not Required
- Max Supply Current
- 14mA
- Input Type
- Non-Inverting
- Turn On Delay Time
- 10 ?s
- Switch Type
- General Purpose
- Output Current per Channel
- 3.5A
- Nominal Input Voltage
- 13V
- Ratio - Input:Output
- 1:1
- Voltage - Load
- 4V~28V
- Fault Protection
- Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Number of Drivers
- 4
- Rds On (Typ)
- 250m ? (Max)
- Output Current Flow Direction
- SINK
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ST VNQ5E250AJ-E.
VNQ5E250AJ-E Overview
As a result, it is packaged in the form of a Tube.This package is included in 16-PowerFSOP (0.154, 3.90mm Width).Mounting type Surface Mount is selected for the LED driving board.A General Purpose switch type is owned by it.In order to guarantee reliable performance, the temperature should be set to -40°C~150°C TJ.In order to operate, it requires a voltage supply of Not Required.A maximum output voltage of N-Channel volts can be achieved by this LED driver.It is equipped with Auto Restart features.It comes under the family of VNQ5E250.A total of 16 terminations have been recorded.The operation is performed through the 16 pins.There is a maximum output of 3.5AV from the LED driver.This operation requires the maximum output current to be decreased to 5A.Surface Mount is mounted in the way.16 pins are connected to it in total.Currently, the LED driving board has 250mOhm resistance.It is part of the VIPower? series.A self-contained econtainer holding Peripheral Drivers capacity contains this lighting driver.This part has a power supply of 8/28V volts.It has a maximum current requirement of 14mA.There are 4 drivers available for this part.
