ST VND5050AJ-E

Manufacturer No:

VND5050AJ-E

Manufacturer:

Package:

PowerSSO-12

Description:

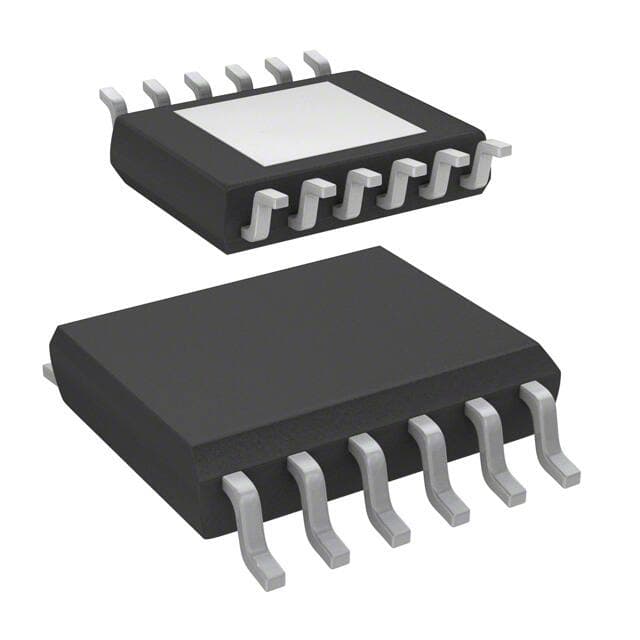

N-Channel PMIC VIPower? Series VND5050 12 Pin PowerSSO-12

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VND5050AJ-E information

ST VND5050AJ-E technical specifications, attributes, parameters and parts with similar specifications to ST VND5050AJ-E.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 8 months ago)

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
PowerSSO-12

Number of Pins
12

Supplier Device Package
PowerSSO-12?

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
VIPower?

Feature
Auto Restart

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Resistance
50mOhm

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

Base Part Number
VND5050

Number of Outputs
2

Output Type
N-Channel

Max Output Current
18A

Number of Channels
2

Interface
On/Off

Max Supply Voltage
36V

Min Supply Voltage
4.5V

Nominal Supply Current
3mA

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
Not Required

Max Supply Current
5?A

Input Type
Non-Inverting

Turn On Delay Time
25 ?s

Switch Type
General Purpose

Output Current per Channel
12A

Nominal Input Voltage
13V

Turn-Off Delay Time
35 ?s

Ratio - Input:Output
1:1

Voltage - Load
4.5V~36V

Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage

Number of Drivers
2

Rds On (Typ)
50mOhm (Max)

Height
1.62mm

Length
5mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST VND5050AJ-E.

Datasheets:

stmicroelectronics-vnd5050ake-datasheets-8058.pdf

VND5050AJ-E Overview

As a result, it is packaged in the form of a Tube.This package is included in PowerSSO-12.Mounting type Surface Mount is selected for the LED driving board.A General Purpose switch type is owned by it.In order to guarantee reliable performance, the temperature should be set to -40°C~150°C TJ.The LED driver is equipped with 2 outputs.In order to operate, it requires a voltage supply of Not Required.A maximum output voltage of N-Channel volts can be achieved by this LED driver.It is equipped with Auto Restart features.It comes under the family of VND5050.The operation is performed through the 12 pins.There is a maximum output of 12AV from the LED driver.This operation requires the maximum output current to be decreased to 18A.Surface Mount is mounted in the way.Currently, the LED driving board has 50mOhm resistance.It is part of the VIPower? series.We currently have 2 channels available.It is suitable for stable operation to operate at a maximum temperature of 150°C°C.To ensure reliability, the unit operates at a temperature of -40°C degrees Celsius.It has a maximum current requirement of 5?A.There is a maximum supply voltage of 36VV that it is capable of handling.Alternatively, 4.5V volts can be used if needed.There are 2 drivers available for this part.
