ST VN7004CHTR

Manufacturer No:

VN7004CHTR

Manufacturer:

Package:

OctaPAK (7 leads + Tab)

Description:

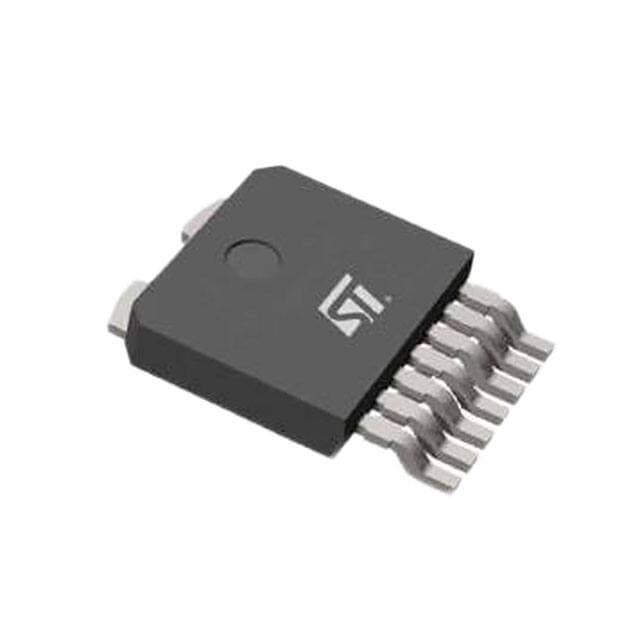

N-Channel PMIC Automotive, AEC-Q100 Series VN7004 OctaPAK (7 leads + Tab)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VN7004CHTR information

ST VN7004CHTR technical specifications, attributes, parameters and parts with similar specifications to ST VN7004CHTR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
40 Weeks

Mounting Type
Surface Mount

Package / Case
OctaPAK (7 leads + Tab)

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Base Part Number
VN7004

Number of Outputs
1

Output Type
N-Channel

Max Output Current
80A

Interface
On/Off

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Switch Type
General Purpose

Nominal Input Voltage
13V

Ratio - Input:Output
1:1

Voltage - Load
4V~28V

Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO

Rds On (Typ)
4m ?

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST VN7004CHTR.

Datasheets:

stmicroelectronics-vn7004chtr-datasheets-2869.pdf

stmicroelectronics-vn7007alhtr-datasheets-2865.pdf

VN7004CHTR Overview

Tape & Reel (TR) is how it's packaged.The OctaPAK (7 leads + Tab) package includes it.This lighting drivere has a mounting type of Surface Mount.There is a General Purpose switch type associated with it.It is recommended that the temperature be set to -40°C~150°C TJ for reliable operation.In this LED driver, there are no outputs available.A supply voltage of Not Required is required for it to operate.There is a maximum output voltage of N-Channel volts.It belongs to the family VN7004.The maximum output current must drop to 80A to meet the operation criteria.Electrical components such as this are included in the Automotive, AEC-Q100 series.
