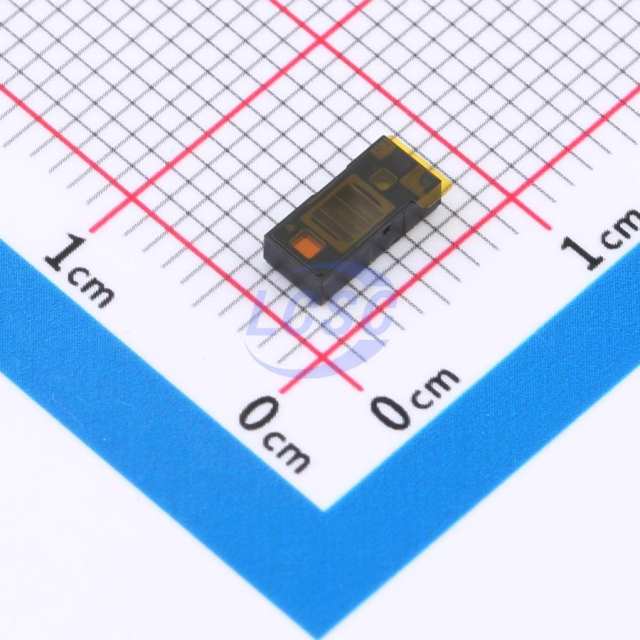

STMicroelectronics VL53L8CHV0GC/1
STMicroelectronics VL53L8CHV0GC/1STMicroelectronics VL53L8CHV0GC/1STMicroelectronics VL53L8CHV0GC/1

STMicroelectronics VL53L8CHV0GC/1

Manufacturer No:

VL53L8CHV0GC/1

Manufacturer:

STMicroelectronics

Package:

Description:

Artificial intelligence enabler, high performance 8x8 multizone Time-of-Flight (ToF) sensor

DHL
DHL

In Stock :3100

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

checkAuthentic Components
checkFast Global Shipping
checkESD & IEC Compliance
checkFull Traceability

Shipping & Availability

DHL
EMS
FedEx
UPS

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse
Expected Shipping：Tue, May 5 - Wed, May 6, 2026
Date Code：Within 2 Years

Payment

PayPal
MasterCard
Visa
American Express

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

VL53L8CHV0GC/1 Information

STMicroelectronics VL53L8CHV0GC/1 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics VL53L8CHV0GC/1.

  • Type
  • Parameter
  • Operating Temp Min Celsius
  • -30.0
  • Operating Temp Max Celsius
  • 85.0
  • ECCN US
  • EAR99
  • ECCN EU
  • NEC
  • Package Size
  • 6.4 x 3.0 x 1.75
  • Packing Type
  • Tape And Reel
  • RoHS Status
  • Grade
  • Industrial
  • Package Name
  • OPT. LGA 6.40X3.0
  • Operating Temp Min Celsius
  • -30.0
  • Type
  • Parameter
  • Operating Temp Max Celsius
  • 85.0
  • ECCN US
  • EAR99
  • ECCN EU
  • NEC
  • Package Size
  • 6.4 x 3.0 x 1.75
  • Packing Type
  • Tape And Reel
  • RoHS Status
  • Grade
  • Industrial
  • Package Name
  • OPT. LGA 6.40X3.0

Download datasheets and manufacturer documentation for STMicroelectronics VL53L8CHV0GC/1.

Data sheet:

Material Declaration:

The VL53L8CH is the perfect Time-of-Flight sensor enabling AI applications, with enhanced performance under ambient light with a wide 65° diagonal FoV. The compact and normalized histogram (CNH) innovative data output is specially designed for artificial intelligence (AI) applications requiring multizone raw data from a high performance multizone ToF sensor.


The IR signal measured in each zone is sent as raw data to the host through each bin of the histogram. Highly configurable, the user can program the resolution of the VL53L8CH up to 64 zones (8x8 zones), modify the histogram resolution up to 128 bins, and define the bin width. All this CNH data is transmitted to the host through I²C or SPI, up to 30 Hz, in addition to the standard processed data of the ToF sensor (ranging distance, signal level, reflectance etc.).


The CNH data transform STMicroelectronics' Time-of-Flight ranging sensor into a versatile optical sensor, which can enable endless AI-based applications. This CNH raw data sent to the host, on top of the standard ranging data, opens the door to many new applications beyond simple distance measurements. From solid material (carpet, wood, glass, mirror...) to gas or liquid (water, oil, chemical...), it becomes possible to detect the location and the size of a cup in a coffee machine or beverage dispenser, to sense the floor material for robotics, and develop advanced shape, motion, or hand posture recognition.


The VL53L8CH integrates a powerful new generation VCSEL, and two advanced metasurface lenses. The integrated VCSEL emits fully invisible 940 nm IR light, which is Class 1 certified and safe for the eyes.

Key features
  • Compact and normalized histogram (CNH) data output for AI
    • Multizone data output up to 64 separate zones
    • Histogram output with signal count for each bin
    • Histogram size programmable up to 128 bins
    • Minimum bin width down to 37 mm
    • Maximum frequency up to 30 Hz through I²C or SPI
    • Ambient IR light level reported for each zone
    • All Time-of-Flight (ToF) processed data (distance, signal amplitude, reflectance etc.) are available, in addition to CNH
  • Highly configurable CNH in order to meet user expectations
    • 64 zones with 18 bins at 15 Hz
    • 32 zones with 36 bins at 15 Hz
    • 16 zones with 48 bins at 25 Hz
  • Wide ToF sensor with 65° field of view (FoV)
    • 45° x 45° square FoV (65° diagonal)
    • Autonomous low-power mode with interrupt programmable thresholds to wake up the host
    • Up to 400 cm ranging
    • Motion indicator for each zone to detect if targets have moved and how they have moved
  • Fully integrated miniature module
    • Emitter: 940 nm invisible-light vertical-cavity surface-emitting laser (VCSEL)
    • Diffractive optical elements (DOE) on both transmitter and receiver enabling square FoV
    • Receiving array of single photon avalanche diodes (SPADs)
    • Low-power microcontroller running firmware
    • Size: 6.4 x 3.0 x 1.75 mm
  • Easy integration
    • Single reflowable component
    • Requires 1.8 V core supply and 3.3 V AVDD supply
    • Optional 1.2 V or 1.8 V IOVDD interface voltage levels
    • I²C (up to 1 MHz) or SPI (up to 3 MHz) interface
    • Compatible with a wide range of cover glass materials
    • Driver compatible with VL53L7CH
    • Pin-to-pin compatible with VL53L8CX
