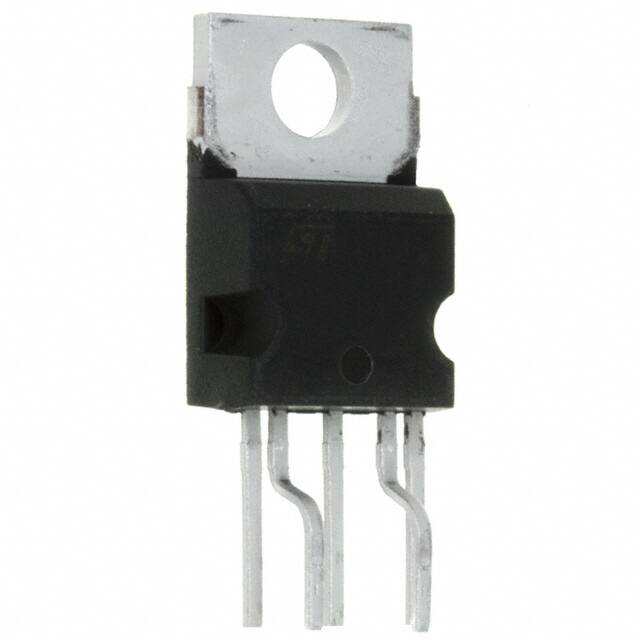

ST VIPER100A-E

Manufacturer No:

VIPER100A-E

Manufacturer:

Package:

LEAD FREE, PENTAWATT HV-5

Description:

Fixed frequency off line converter

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VIPER100A-E information

ST VIPER100A-E technical specifications, attributes, parameters and parts with similar specifications to ST VIPER100A-E.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
STMICROELECTRONICS

Part Package Code
ZFM

Package Description
LEAD FREE, PENTAWATT HV-5

Pin Count
5

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
STMicroelectronics

Analog IC - Other Type
SWITCHING REGULATOR

Control Mode
CURRENT-MODE

Control Technique
PULSE WIDTH MODULATION

Input Voltage-Max
15 V

Input Voltage-Min
9 V

Input Voltage-Nom
13 V

JESD-30 Code
R-PZFM-T5

JESD-609 Code
e3

Number of Functions
1

Number of Terminals
5

Output Current-Max
5.3 A

Package Body Material
PLASTIC/EPOXY

Package Code
ZIP

Package Equivalence Code
ZIP5,.2,.12,100TB

Package Style
FLANGE MOUNT

Qualification Status
Not Qualified

Surface Mount
NO

Switcher Configuration
SINGLE

Switching Frequency-Max
200 kHz

Technology
MOS

Terminal Finish
MATTE TIN

Terminal Form
THROUGH-HOLE

Terminal Pitch
2.54 mm

Terminal Position
ZIG-ZAG

Download datasheets and manufacturer documentation for ST VIPER100A-E.

VIPER100A-E Overview

There is a ac to dc converter embedded in package Pentawatt-5 HV (Bent and Staggered Leads) .The ac dc converter is available in Tube case.In this case, the AC/DC converter is mounted in the way of Surface Mount .In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.When the switching frequency reaches Up to 200kHz , the process is complete.The AC/DC converter is capable of being used when the supply voltage is 8V~15V (Vcc/Vdd).There are a total of 5 terminations in it.It contains 5 pins.The ac-dc converter has 5 pins.Through Hole is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of VIPER? .Similar acdc converters can be found using the VIPER100 family.AC to DC converter is necessary to run 1 outputs.AC to DC converter is contained in Switching Regulator or Controllers .We are setting the output current to 3A .The voltage output by this AC/DC converter is 700V .This power AC DC is capable of reaching high efficiencies when operating at a frequency of 200kHz .You may read the REACH SVHC standard at No SVHC .Input voltage for the AC to DC converter is available under 230V .Approximately 16mA amps of supply current can be handled by the power AC DC.An input voltage (AC) should be applied under 230V to the AC to DC power converter.Using 125°C as the maximum ensures that the AC to DC power converter operates in a stable manner.Minimum working temperature of this isolated switch must not be lower than 25°C .When set to 12mA , AC to DC converter consumes quiescent current.

VIPER100A-E Features

Packaged with Pentawatt-5 HV (Bent and Staggered Leads)
Switching Frequency at Up to 200kHz
With 5 pins
Output Current at 3A

VIPER100A-E Applications

There are a lot of STMicroelectronics
VIPER100A-E AC DC Converters applications.

DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
