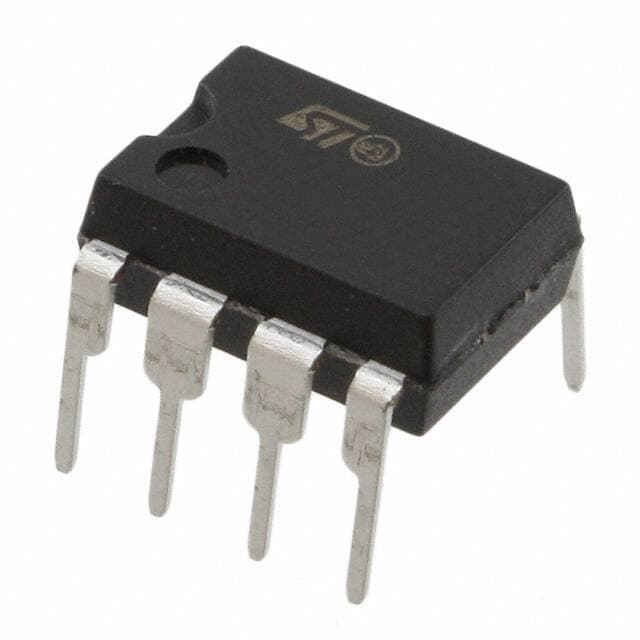

Manufacturer No:

VIPER06LN

Manufacturer:

ST

Package:

8-DIP (0.300, 7.62mm), 7 Leads

Description:

7 Terminations 11.5V~23.5V 7 Pin VIPER06 AC to DC power converter VIPer? plus Series 1 Outputs 60kHz

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VIPER06LN information

ST VIPER06LN technical specifications, attributes, parameters and parts with similar specifications to ST VIPER06LN.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 6 months ago)
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 8-DIP (0.300, 7.62mm), 7 Leads
  • Surface Mount
  • NO
  • Number of Pins
  • 7
  • Weight
  • 850.995985mg
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tube
  • Series
  • VIPer? plus
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 7
  • ECCN Code
  • EAR99
  • Subcategory
  • Switching Regulator or Controllers
  • Power Rating
  • 4W
  • Max Power Dissipation
  • 8W
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Terminal Pitch
  • 2.54mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • VIPER06
  • Number of Outputs
  • 1
  • Input Voltage-Nom
  • 14V
  • Analog IC - Other Type
  • SWITCHING REGULATOR
  • Operating Supply Current
  • 1.45mA
  • Voltage - Supply (Vcc/Vdd)
  • 11.5V~23.5V
  • Output Power
  • 30mW
  • Topology
  • Buck, Flyback
  • Control Mode
  • CURRENT-MODE
  • Frequency - Switching
  • 60kHz
  • Input Voltage (Max)
  • 23.5V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Internal Switch(s)
  • Yes
  • Fault Protection
  • Current Limiting, Open Loop, Over Temperature
  • Max Duty Cycle
  • 80 %
  • Duty Cycle
  • 70%
  • Output Isolation
  • Either
  • Voltage - Breakdown
  • 800V
  • Voltage - Start Up
  • 13V
  • Height Seated (Max)
  • 5.33mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST VIPER06LN.

Datasheets:

PCN Assembly/Origin:

VIPER06LN Overview


An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.Tube case is available for the ac dc converter.Through Hole mounts this AC/DC converter.The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.There is 60kHz switching frequency.Supply voltage (Vcc/Vdd) does not need to exceed 11.5V~23.5V .As a result, it has a total of 7 terminations.In this ac/dc converter, there are 7 pins.This AC to DC converter belongs to the VIPer? plus family of manufacturers.If you select the VIPER06 family, you will be able to search similar acdc converters.A total of 1 outputs are available for processing.The ac to dc conversions can be found in Switching Regulator or Controllers .Unique techniques can be used to ensure input voltage at the maximum value of 23.5V .The output power of a coverter is assumed to be 30mW .

VIPER06LN Features


Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 60kHz
With 7 pins


VIPER06LN Applications


There are a lot of STMicroelectronics
VIPER06LN AC DC Converters applications.


  • Linear Adapter Replacements
  • Chargers for cell/cordless phones
  • PDAs
  • MP3
  • Portable audio
  • Adapters
  • Networking
  • Battery Chargers
  • Power Adaptors
  • Standby Power Supplies

User Guide
