Microchip VC-826-ECE-KAAN-100M000000TR

Manufacturer No:

VC-826-ECE-KAAN-100M000000TR

Manufacturer:

Package:

Description:

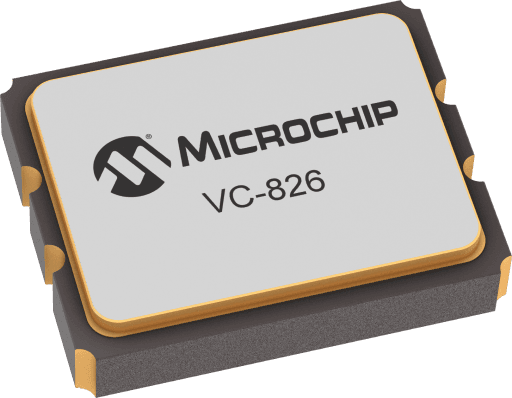

Vectron\u0027s VC-826 Crystal Oscillator is a quartz stabilized, differential output oscillator, operating off a 2.5 or 3.3 volt power supply in a hermetically sealed 3.2 x 2.5 ceramic package.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VC-826-ECE-KAAN-100M000000TR information

Microchip VC-826-ECE-KAAN-100M000000TR technical specifications, attributes, parameters and parts with similar specifications to Microchip VC-826-ECE-KAAN-100M000000TR.

Type
Parameter

Dimensions
3225 6-Pin

Supply Voltage
1.8, 2.5, 3.3

TempRange Max °C (degrees Celsius)
85

TempRange Min °C (degrees Celsius)
-40

Download datasheets and manufacturer documentation for Microchip VC-826-ECE-KAAN-100M000000TR.

Data Sheets:

4a27eb666bc62923f3b441c80cbc1e3c.pdf

Microchip's VC-826 Crystal Oscillator is a quartz stabilized, differential output oscillator, operating off a 2.5 or 3.3 volt power supply in a hermetically sealed 3.2 x 2.5 ceramic package. Available with a internal Fundamental or 3rd Overtone Crystal.

Frequency Range - 20MHz to 170MHz
Size - 3.2x2.5mm
Output Format - LVPECL, LVDS
RMS Phase Jitter - 300fs rms
Supply Voltage - 2.5, 3.3
Maximum Operating Temperature Range - -40 to +85C
Applications - Ethernet/GbE/Synchronous Ethernet, Fiber Channel, Enterprise Servers, Telecom, Clock source for A/D’s & D/A’s, Driving FPGA’s, Test & Measurement, PON, Medical, COTS
