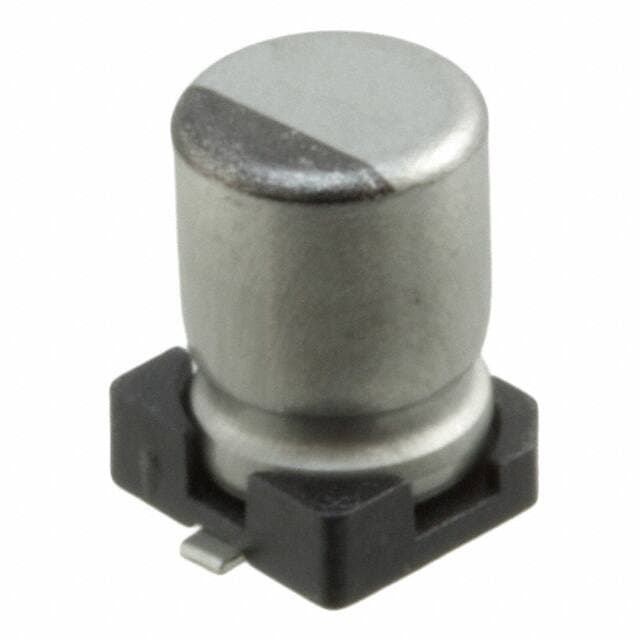

NICHICON UWD1E100MCL1GS

Manufacturer No:

UWD1E100MCL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UWD 10?F Capacitor ±20% Tape & Reel (TR) Surface Mount 80mA 0.157Dia 4.00mm -55°C~105°C 1mm Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UWD1E100MCL1GS information

NICHICON UWD1E100MCL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UWD1E100MCL1GS.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Surface Mount Land Size
0.169Lx0.169W 4.30mmx4.30mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
UWD

Published
2009

Size / Dimension
0.157Dia 4.00mm

Tolerance
±20%

Feature
General Purpose

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Applications
General Purpose

Voltage - Rated
25V

Capacitance
10?F

Voltage - Rated DC
25V

Lead Pitch
1mm

Voltage
25V

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
80mA

Life (Hours)
2000 hours

Impedance
1.8Ohms

Ripple Current @ Low Frequency
40mA @ 120Hz

Ripple Current @ High Frequency
80mA @ 100kHz

Dissipation Factor
0.16 %

Diameter
4mm

Height
5.8mm

Height Seated (Max)
0.240 6.10mm

Length
5.8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UWD1E100MCL1GS.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

nichicon-pcf1a151mcl6gs-datasheets-6222.pdf

UWD1E100MCL1GS Overview

A full charge means 80mA @ 100kHz ripple current.During the lowest charge, ripple current is 40mA @ 120Hz.You should keep the seated height (Max) below 0.240 6.10mm.There is a dissipation factor of 0.16 %.The capacitor operates from 25V DC voltage.When operating at -55°C~105°C, high efficiency can be achieved.

UWD1E100MCL1GS Features

the ripple current is 80mA @ 100kHz.
the ripple current is 40mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C

UWD1E100MCL1GS Applications

There are a lot of Nichicon
UWD1E100MCL1GS applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems

User Guide
