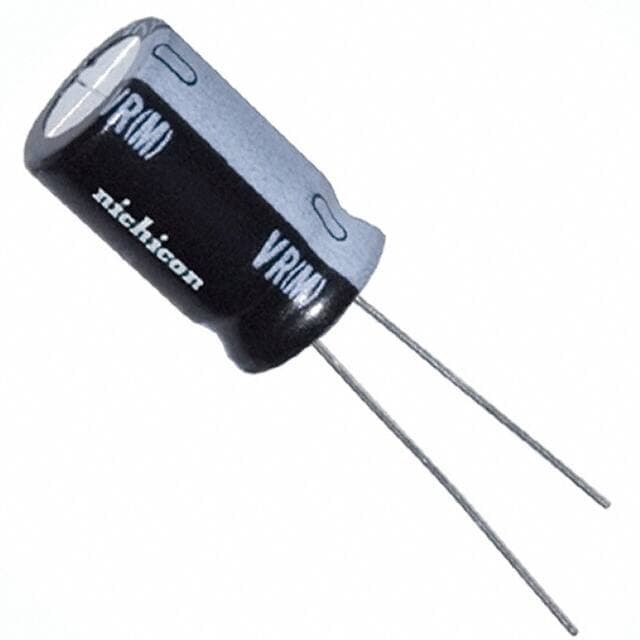

NICHICON UVR1H471MHD

Manufacturer No:

UVR1H471MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVR 470?F Capacitor ±20% Bulk Through Hole 760mA 0.492Dia 12.50mm -40°C~85°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVR1H471MHD information

NICHICON UVR1H471MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVR1H471MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
PCB, Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
UVR

Published
2005

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
470?F

Voltage - Rated DC
50V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
50V

Lifetime @ Temp
2000 Hrs @ 85°C

Leakage Current
705?A

Ripple Current
760mA

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
760mA @ 120Hz

Ripple Current @ High Frequency
1.14A @ 10kHz

Dissipation Factor
0.12 %

Diameter
12.5mm

Height
25mm

Height Seated (Max)
0.866 22.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UVR1H471MHD.

UVR1H471MHD Overview

Ripple current at full charge is 1.14A @ 10kHz.It is 760mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.866 22.00mm.Consequently, it operates with a dissipation factor of 0.12 % (0.12 %).Voltage - Rated DC - is 50V.It is recommended that the operating temperature be kept at -40°C~85°C to achieve high efficiency.

UVR1H471MHD Features

the ripple current is 1.14A @ 10kHz.
the ripple current is 760mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 50V
an operating temperature of -40°C~85°C

UVR1H471MHD Applications

There are a lot of Nichicon
UVR1H471MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
