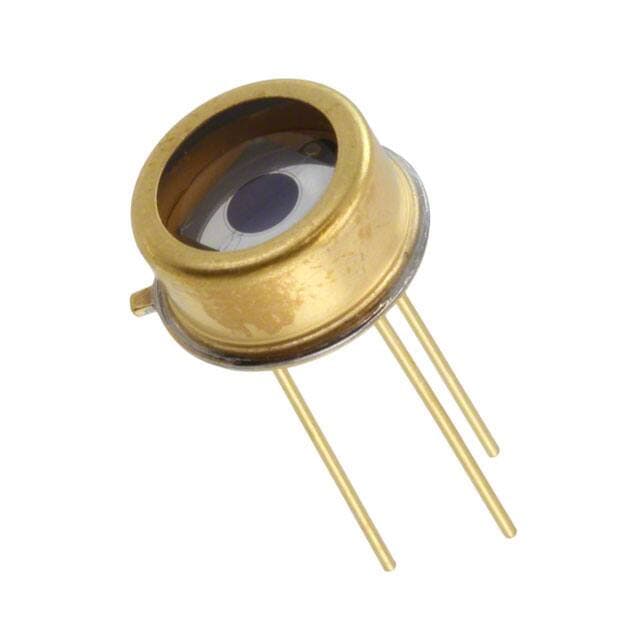

Opto Diode Corp UVG5S

Manufacturer No:

UVG5S

Manufacturer:

Opto Diode Corp

Package:

Description:

Through Hole -20°C~80°C Tray 5mm2 1?s 1nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVG5S information

Opto Diode Corp UVG5S technical specifications, attributes, parameters and parts with similar specifications to Opto Diode Corp UVG5S.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Through Hole

Operating Temperature
-20°C~80°C

Packaging
Tray

Series
UVG

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
80°C

Min Operating Temperature
-20°C

Viewing Angle
45°

Response Time
1?s

Dark Current
1nA

Spectral Range
250nm ~ 1100nm

Active Area
5mm2

Current - Dark (Typ)
1nA

Responsivity @ nm
0.115 A/W @ 254nm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Opto Diode Corp UVG5S.

UVG5S Overview

To prevent damage to these photodiodes, they are packaged in Tray. During operation, photodiodes should not have a temperature higher than 80°C. In spite of this, the photodiodes should be operated at a minimum operating temperature of -20°C. When no light is input, a photodiode will conduct at 1nA current.

UVG5S Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -20°C~80°C
Packaging: Tray
Spectral Range: 250nm ~ 1100nm
Response Time: 1?s
Viewing Angle: 45°
Responsivity @ nm: 0.115 A/W @ 254nm

UVG5S Applications

There are a lot of Opto Diode Corp
UVG5S Photodiodes applications.

Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
