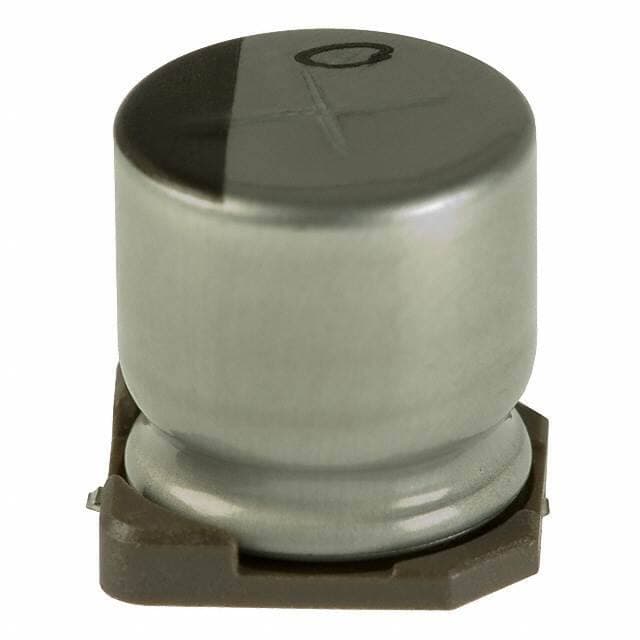

NICHICON UUD1H221MNL1GS
Manufacturer No:
UUD1H221MNL1GS
Manufacturer:
Package:
Radial, Can - SMD
Description:
UUD 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 670mA 0.394Dia 10.00mm -55°C~105°C Polar 4.5mm Radial, Can - SMD
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 10.740000 | $ 10.740000 |
| 2 | $ 8.950000 | $ 17.900000 |
| 4 | $ 7.876000 | $ 31.504000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
UUD1H221MNL1GS information
NICHICON UUD1H221MNL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUD1H221MNL1GS.
| Type | Parameter |
|---|---|
| Factory Lead Time | 20 Weeks |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Number of Pins | 2 |
| Dielectric Material | Aluminium |
| Surface Mount Land Size | 0.406Lx0.406W 10.30mmx10.30mm |
| Operating Temperature | -55°C~105°C |
| Packaging | Tape & Reel (TR) |
| Series | UUD |
| Published | 2004 |
| Size / Dimension | 0.394Dia 10.00mm |
| Tolerance | ±20% |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | SMD/SMT |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Applications | General Purpose |
| Voltage - Rated | 50V |
| Capacitance | 220?F |
| Voltage - Rated DC | 50V |
| Voltage - Rated AC | 50V |
| Lead Pitch | 4.5mm |
| Lead Diameter | 1.1 mm |
| Type | Parameter |
|---|---|
| Lifetime @ Temp | 5000 Hrs @ 105°C |
| Leakage Current | 3?A |
| Ripple Current | 670mA |
| Polarization | Polar |
| Life (Hours) | 5000 hours |
| Impedance | 180mOhms |
| Ripple Current @ Low Frequency | 335mA @ 120Hz |
| Ripple Current @ High Frequency | 670mA @ 100kHz |
| Dissipation Factor | 0.14 % |
| Ripple Current (AC) | 670mA |
| Diameter | 10mm |
| Height | 10mm |
| Height Seated (Max) | 0.394 10.00mm |
| Length | 10mm |
| REACH SVHC | Unknown |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
