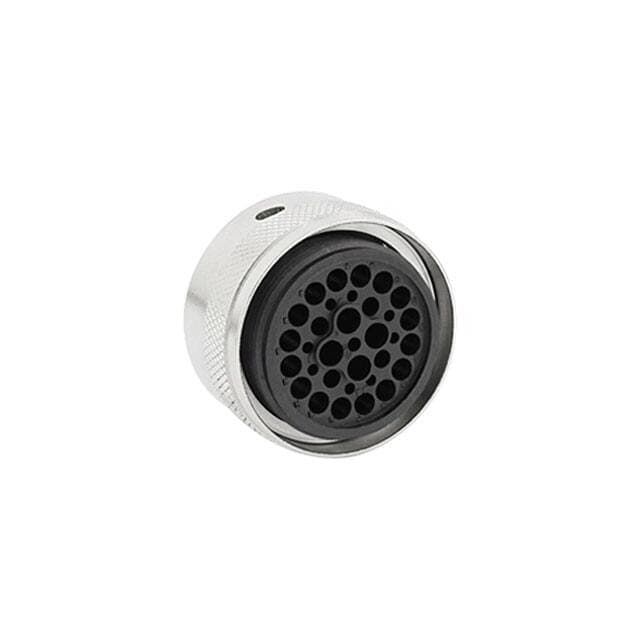

SOURIAU-SUNBANK UTG62020SN

Manufacturer No:

UTG62020SN

Manufacturer:

SOURIAU-SUNBANK

Package:

Metal

Description:

Plug Housing Brass Free Hanging (In-Line) Nickel 20 (19 + PE) Positions Bulk Bayonet Lock Unshielded Contacts Not Included Trim Trio® UTG

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UTG62020SN information

SOURIAU-SUNBANK UTG62020SN technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK UTG62020SN.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
NOT SPECIFIED

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Metal

Contact Shape
Circular

Shell Material
Brass

Insert Material
Thermoplastic, Glass Filled

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
Trim Trio® UTG

Feature
Coupling Nut

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Plug Housing

Type
For Female Sockets

Number of Positions
20 (19 + PE)

Additional Feature
COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28, POLARIZED, 1 GROUND CONTACT AVAILABLE

Fastening Type
Bayonet Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Contact Type
Crimp

Option
GENERAL PURPOSE

Total Number of Contacts
20

Orientation
N (Normal)

Shielding
Unshielded

Shell Finish
Nickel

Shell Size - Insert
20-20

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Housing Color
Silver

Empty Shell
YES

Note
Contacts Not Included

Contact Size
16

Length
24.9mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK UTG62020SN.

Datasheets:

souriausunbank-utg61619sn-datasheets-0050.pdf

UTG62020SN Overview

Plug Housing packaging is included.This device has a mounting type of Free Hanging (In-Line).We package the product with a Bulk case.The product is part of the Trim Trio® UTG Series.Unlike other [0] products, this part has a lot of benefits.In operation, Coupling Nut should remain constant.In order to mount it, you'll need a Free Hanging socket.Additionally, there are features like COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28, POLARIZED, 1 GROUND CONTACT AVAILABLE, just to name a few.Packages with the Metal enclose a device.

UTG62020SN Features

Trim Trio® UTG series

UTG62020SN Applications

There are a lot of SOURIAU-SUNBANK
UTG62020SN Circular Connectors applications.

Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
Scientific instruments.
Music reproduction technology
Communication Systems
