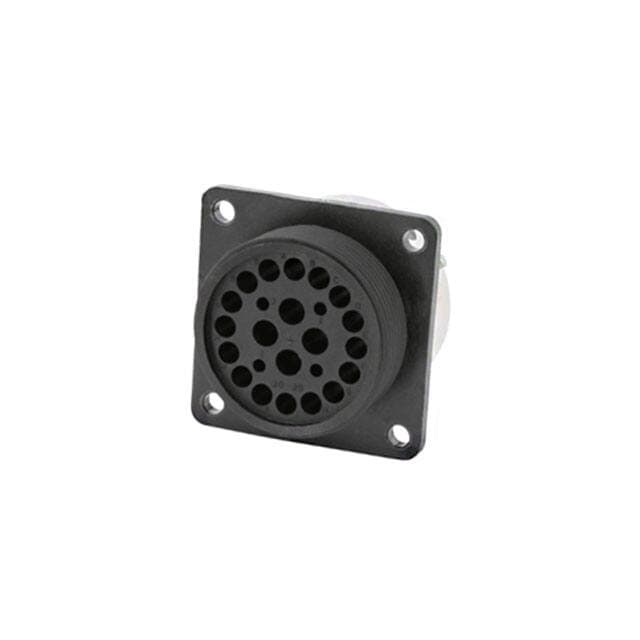

SOURIAU-SUNBANK UTG02020SH

Manufacturer No:

UTG02020SH

Manufacturer:

Package:

Description:

Receptacle Housing Polyester, Glass Filled Panel Mount 20 (19 + PE) Positions Bulk Bayonet Lock Unshielded Contacts Not Included Trim Trio® UTG

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UTG02020SH information

SOURIAU-SUNBANK UTG02020SH technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK UTG02020SH.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
NOT SPECIFIED

Mount
Flanges, Panel

Mounting Type
Panel Mount

Mounting Feature
Flange

Contact Shape
Circular

Shell Material
Polyester, Glass Filled

Insert Material
Thermoplastic, Glass Filled

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
Trim Trio® UTG

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Receptacle Housing

Type
For Female Sockets

Number of Positions
20 (19 + PE)

Additional Feature
COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28, POLARIZED, 1 GROUND CONTACT AVAILABLE

Fastening Type
Bayonet Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
WATERPROOF

Total Number of Contacts
20

Orientation
N (Normal)

Shielding
Unshielded

Ingress Protection
IP65 - Dust Tight, Water Resistant

Shell Size - Insert
20-20

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Housing Color
Black, Silver

Empty Shell
YES

Note
Contacts Not Included

Contact Size
16

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Ratings
Dust Tight, IP65, Water Resistant

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK UTG02020SH.

datasheets:

souriausunbank-utg02020sh-datasheets-5669.pdf

UTG02020SH Overview

This product is packaged in a Receptacle Housing box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Trim Trio® UTG Series.There are many benefits shared by this part and other products in the [0] category.This part must be mounted with a Flanges, Panel socket.Furthermore, there are other features such as COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28, POLARIZED, 1 GROUND CONTACT AVAILABLE, to name a few.

UTG02020SH Features

Trim Trio® UTG series

UTG02020SH Applications

There are a lot of SOURIAU-SUNBANK
UTG02020SH Circular Connectors applications.

CMOS Image sensors for mobile applications
Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
