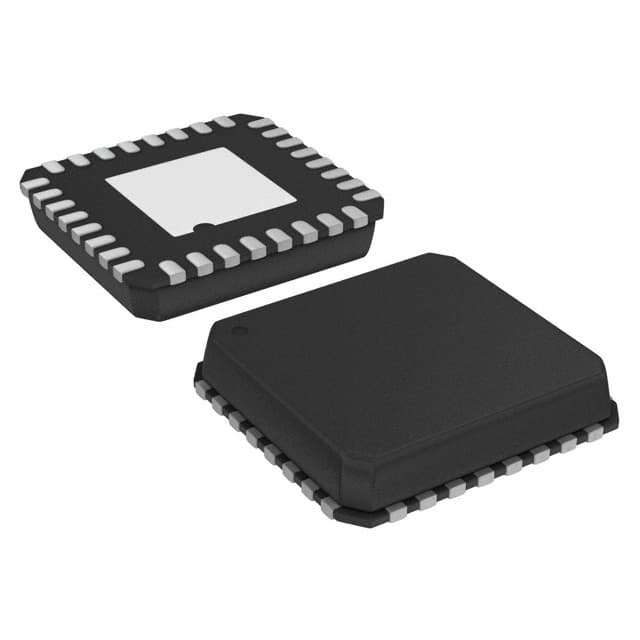

Microchip USB3300-EZK

Manufacturer No:

USB3300-EZK

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

The USB3300 is an industrial temperature Hi-Speed USB Physical Layer Transceiver with a ULPI that allows it to act as a device, host, or an OTG device.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USB3300-EZK information

Microchip USB3300-EZK technical specifications, attributes, parameters and parts with similar specifications to Microchip USB3300-EZK.

Type
Parameter

BatteryChargerDetection
No

CrystalSupport
Yes

HostBasedIF
No

IOVoltage
3.3V

IntegratedUSBSwitch
No

Reference Clock Freq
24MHz

TempRange Max
85

TempRange Min
-40

ULPIInputClockMode
No

Upstream Port
ULPI

Download datasheets and manufacturer documentation for Microchip USB3300-EZK.

The USB3300 is an industrial temperature Hi-Speed USB Physical Layer Transceiver (PHY). The USB3300 uses a low pin count interface (ULPI) to connect to a ULPI compliant Link layer. The ULPI interface reduces the UTMI+ interface from 54 pins to 12 pins using a method of in-band signaling and status byte transfers between the Link and PHY.

This PHY was designed from the start with the ULPI interface. No UTMI to ULPI wrappers are used in this design which provides a seamless ULPI to Link interface. The result is a PHY with a low latency transmit and receive time. Microchip's low latency high speed and full speed receiver provide the option of re-using existing UTMI Links with a simple wrapper to convert UTMI to ULPI.

The ULPI interface allows the USB3300 PHY to operate as a device, host, or an On-The-Go (OTG) device. Designs using the USB3300 PHY as a device, can add host and OTG capability at a later date with no additional pins.

The ULPI interface, combined with Microchip's proprietary technology, makes the USB3300 the ideal method of adding Hi-Speed USB to new designs. The USB3300 features an industry leading small footprint package (5mm by 5mm) with sub 1mm height. In addition the USB3300 integrates all DP and DM termination resistances and requires a minimal number of external components.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

USB-IF Hi-Speed certified to the Universal Serial Bus Specification Rev 2.0

Interface compliant with the ULPI Specification revision 1.1 in 8-bit mode

Industry standard UTMI+ Low Pin Interface (ULPI) Converts 54 UTMI+ signals into a standard 12 pin Link controller interface

54.7mA Unconfigured Current (typical) - ideal for bus powered applications

83uA suspend current (typical) - ideal for battery powered applications

Latch-Up performance exceeds 150 mA per EIA/JESD 78, Class II

ESD protection levels of ±8kV HBM without external protection devices

Integrated protection to withstand IEC61000-4-2 ESD tests (±8kV contact and ±15kV air) per 3rd party test facility

Supports FS pre-amble for FS hubs with a LS device attached (UTMI+ Level 3)

Supports HS SOF and LS keep-alive pulse

Includes full support for the optional On-The-Go (OTG) protocol detailed in the On-The-Go Supplement Revision 1.0a specification

Supports the OTG Host Negotiation Protocol (HNP) and Session Request Protocol (SRP)

Allows host to turn VBUS off to conserve battery power in OTG applications

Supports OTG monitoring of VBUS levels with internal comparators. Includes support for an external VBUS or fault monitor

Low Latency Hi-Speed Receiver (43 Hi-Speed clocks Max) allows use of legacy UTMI Links with a ULPI wrapper

Integrated Pull-up resistor on STP for interface protection allows a reliable Link/PHY start-up with slow Links (software configured for low power)

Internal 1.8 volt regulators allow operation from a single 3.3 volt supply

Internal short circuit protection of ID, DP and DM lines to VBUS or ground

Integrated 24MHz Crystal Oscillator supports either crystal operation or 24MHz external clock input

Internal PLL for 480MHz Hi-Speed USB operation

Industrial Operating Temperature -40°C to +85°C

32 pin, QFN RoHS Compliant package (5 x 5 x 0.90 mm height)

Cell Phones
Scanners
External Hard Drives
Digital Still and Video Cameras
Portable Media Players
Printers
