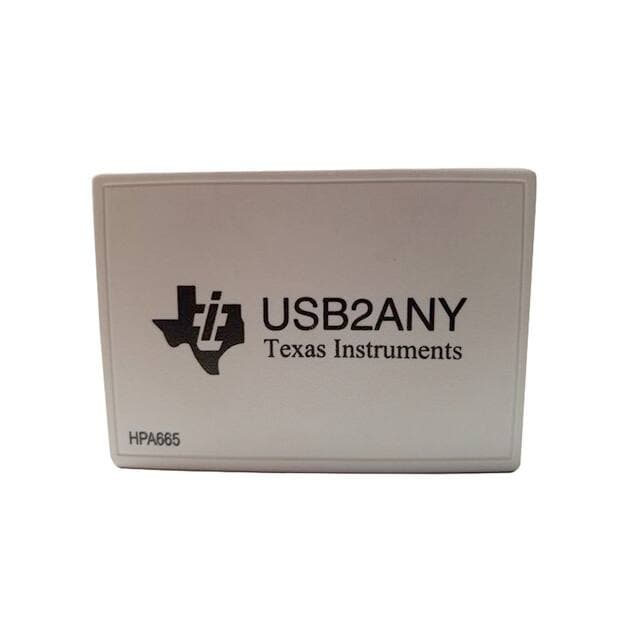

TI USB2ANY

Manufacturer No:

USB2ANY

Manufacturer:

Package:

Module

Description:

Interface - UARTs (Universal Asynchronous Receiver Transmitter) 13

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USB2ANY information

TI USB2ANY technical specifications, attributes, parameters and parts with similar specifications to TI USB2ANY.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
4 Weeks

Mounting Type
Surface Mount

Package / Case
Module

Number of Pins
0

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
USB Serial Port Controller

Voltage - Supply
3.3V

Base Part Number
USB2

Interface
I2C, SPI, UART, USB

Number of I/O
13

RAM Size
10K x 8

Program Memory Type
FLASH (128kB)

Controller Series
MSP430

Download datasheets and manufacturer documentation for TI USB2ANY.

USB2ANY Interface Adapter Description

The USB2ANY is a small dongle that allows a computer to control an electronic evaluation module (EVM) via USB. Because of their specific interfaces, which are often supported on commercial computers, these EVMs cannot normally connect directly to the computer.
The USB2ANY board can supply regulated 3.3-V and 5.0-V DC power to the target device, with a maximum current of 300 mA. (combined 3.3 V and 5.0 V). The voltage outputs include current sensing and limiting circuits that protect both the EVM and the USB2ANY from overcurrent, shorts, and other potential problems.
A USB cable, a 10-pin cable (for most common interfaces), and a 30-pin cable are included with the USB2ANY (for all supported interfaces).

USB2ANY Interface Adapter Features

Fast execution (25-MHz clock)
16-bit RISC CPU
128KB flash memory
10KB SRAM
Two universal serial communication interfaces (supports SPI, I2C, UART)
Four analog inputs, 12-bit analog-to-digital converter (ADC)
Full-speed universal serial bus (USB) with internal PHY supporting USB 2.0
13 general purpose input/output (GPIO) (shared) lines with switchable pullup or pulldown resistors
Four PWM outputs
63 I/O pins
I2C with programmable 1.5-k? pullup resistors
Switchable 3.3-V or 5-V power to DUT
Four 16-bit counters and timers
Three-channel internal DMA
Two analog outputs, 8-bit digital-to-analog converter (DAC)
Hardware multiplier supporting 32-bit operations
SPI ? up to 8-MHz SCLK
UART (300 to 230,400 Baud)
Several other interfaces

USB2ANY Interface Adapter Applications

EVM Applications

PWM Servo Motor
Signla Amplifiers
Voltage Reference
SPI bus

User Guide
