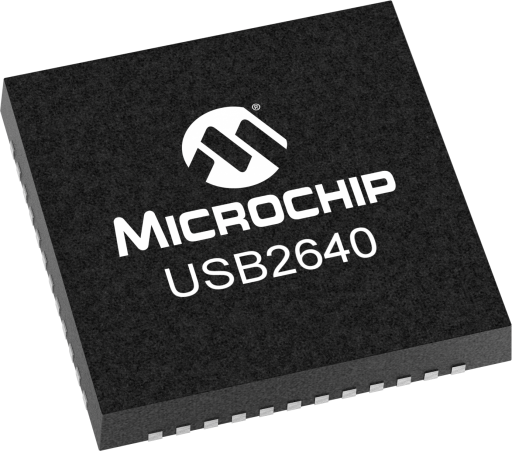

Microchip USB2640I-HZH-02
Manufacturer No:
USB2640I-HZH-02
Manufacturer:
Package:
48-VFQFN Exposed Pad
Description:
The USB2640 combines an interface between a USB host and Flash media card with a versatile, cost-effective and power-efficient 2-port Hi-Speed USB 2.0 hub controller.
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
USB2640I-HZH-02 Information
Microchip USB2640I-HZH-02 technical specifications, attributes, parameters and parts with similar specifications to Microchip USB2640I-HZH-02.
- Type
- Parameter
- Upstream Port
- USB 2.0
- USB Speed
- Hi Speed
- Down stream Ports
- SD, MMC, MS, xD
- MCU Interface
- USB
- Tx Buffer Size
- 3K
- Rx Buffer Size
- 3K
- GPIOs
- 1
- OpVoltage
- 3.3
- MGMT I/F
- No
- ROM I/F
- I2C
- Type
- Parameter
- UART
- No
- CompactFlash
- No
- Secure Digita lMMcards
- 1
- SD MM CS DIO Ports
- 1
- Memory Stick
- Yes
- xD Picture Card
- Yes
- Logical Unit Num
- 1
- Temp Range Min
- -40
- Temp Range Max
- 85
Download datasheets and manufacturer documentation for Microchip USB2640I-HZH-02.
Design Checklist:
Microchip's USB264x/2660 family combines an ultra-fast interface between a USB host and today's most popular Flash media cards with a versatile, cost-effective and power-efficient 2-port Hi-Speed USB 2.0 hub controller. USB264x/2660 is designed for applications that demand low power, small footprint and reduced BOM without compromising performance or features.
Offering a high level of USB 2.0 compliance and interoperability, the USB264x/2660 family allows system designers the flexibility of independent access to a wide selection of Flash media readers and also provides additional downstream USB access ports.
Each device in the USB264x/2660 family consists of USB 2.0 device transceivers with 2-port hub functionality, a fast 8051 microprocessor and Memory Stick® (MS), xD-Picture Card™* (xD) and Secure Digital (SD) controllers in a single, fully-integrated chip. The USB2660 has an additional SD/MMC/eMMC port. This family of devices offers USB expansion ports as well as a Flash card media reader/writer capable of ultra high-performance operation. Average sustained transfer rates exceeding 35MB/s are possible if the media and host can support those rates.**
*Microchip makes the following part-numbered device available for purchase only by customers who are xD-Picture Card licensees: USB2640, USB2660. By purchasing or ordering any of such devices, Buyer represents, warrants, and agrees that Buyer is a duly licensed Licensee under an xD-Picture Card™ License Agreement with Fuji Photo Film Co., Ltd., Olympus Optical Co., Ltd., and Toshiba Corporation; and that Buyer will maintain in effect such xD-Picture Card license and will give Microchip reasonable advance notice of any termination or expiration of such xD-Picture Card license, but in no event less than five days advance notice. Microchip may discontinue making such devices available for purchase by Buyer and/or discontinue further deliveries of such devices if such xD-Picture Card license shall expire, terminate, or cease to be in force, or if Buyer is or becomes in default of such xD-Picture Card license.
**Results are based on actual measurements on evaluation platforms developed by Microchip, and are meant only as a general guideline, not as a guarantee. Actual customer results may vary based on a number of factors, including board layout and measurement technique.
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
- Applications:
- Set-top Boxes
- Printers
- Desktop and Mobile PCs
- Consumer Audio/Visual (A/V)
- Digital TVs
- Monitors
- Media Players/Viewers
- Gaming Consoles
- Digital Photo Frames
