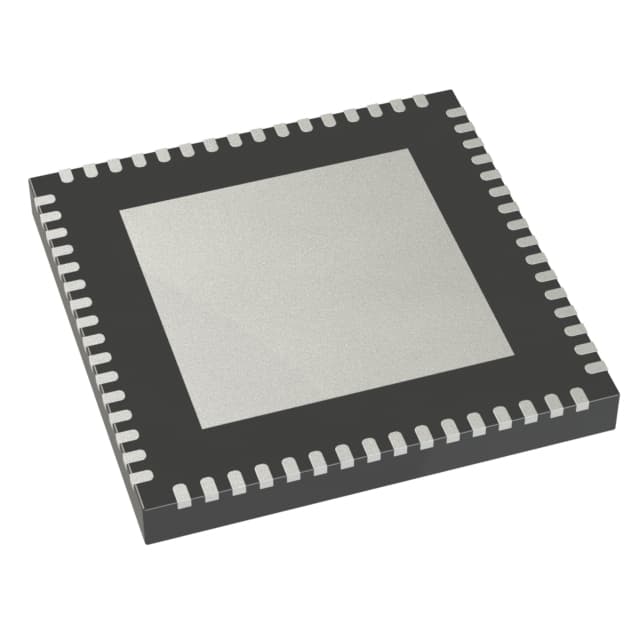

Microchip USB2517-JZX

Manufacturer No:

USB2517-JZX

Manufacturer:

Microchip

Package:

64-VFQFN Exposed Pad

Description:

The Microchip USB2517 is a versatile, cost-effective and power-efficient 7-port USB 2.0 hi-speed hub controller designed for low power small footprint applications.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USB2517-JZX information

Microchip USB2517-JZX technical specifications, attributes, parameters and parts with similar specifications to Microchip USB2517-JZX.

Type
Parameter

Upstream Port
USB 2.0

USB Speed
USB 2.0

Downstream Ports
7

SmartHub
No

MGMT I/F
I2C

ROM I/F
No

Op Voltage (V)
3.3

MultiTRAK Tech
Yes

Per-Port Switching
No

Integrated Flash Media Reader
No

PortMap
Yes

PortSwap
Yes

TrueSpeed
Yes

PHYBoost
Yes

Temp. Range Min.
-40

Temp. Range Max.
85

Download datasheets and manufacturer documentation for Microchip USB2517-JZX.

Microchip's USB251x is a family of versatile, cost-effective and power-efficient USB 2.0 hub controllers. Leveraging Microchip's innovative MultiTRAK technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB251x family is designed for applications that demand low power and a small footprint without compromising on performance.

Well-suited for consumer and mobile applications, all members of the USB251x family are available in space-saving packages. The common 36-pin package shared among the 2/3/4-port hub controllers measures only 6x6mm and provides an ultra small footprint for space-constrained designs while allowing scalable port expansion from two to four ports. The 7-port USB2517 comes in a space-efficient 9x9mm 64-pin package.

Over 30 programmable features, including Microchip's unique PortMap, PortSwap, TrueSpeed and PHYBoost are designed to aid system designers in simplifying PCB layout and optimizing bill-of-material cost. For applications requiring extended operating temperature range, the USB251x i-temp series is designed to meet -40°C to 85°C industrial temperature requirements.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

High performance, low-power, small footprint hub controller IC with 2, 3, 4, or 7 downstream ports (indicated by the “x” in the part number)

Fully compliant with the USB 2.0 specification

Enhanced OEM configuration options available through either a single serial I²C® EEPROM, or SMBus slave port

MultiTRAK - High-performance multiple transaction translator which provides one transaction translator per port

PortMap - Flexible port mapping and disable sequencing

PortSwap - Programmable USB differential-pair pin locations ease PCB design by aligning USB signal lines directly to connectors

PHYBoost - Programmable USB signal drive strength for recovering signal integrity using 4-level driving strength resolution

Full power management with individual or ganged power control of each downstream port

Fully integrated USB termination and pull-up/pulldown resistors

Supports a single external 3.3 V supply source; internal regulators provide 1.8 V internal core voltage

Onboard 24 MHz crystal driver, ceramic resonator, or external 24/48 MHz clock input

Customizable vendor ID, product ID, and device ID

4 kilovolts of HBM JESD22-A114F ESD protection (powered and unpowered)

Supports self- or bus-powered operation

36-pin QFN (6x6 mm)

48-pin QFN (7x7 mm)

64-pin QFN (9x9 mm)

USB251xi products support the industrial temperature range of -40°C to +85°C

Mobile PC Docking Stations
LCD Monitors/TVs
PC Motherboards
Gaming Consoles
Multi-Function Printers
Cable/DSL Modems
Set-Top Boxes
DVD/CD-ROM/DVR
HDD Enclosures
Keyboards
KVM Switches
Server Front Panels
Point-of-Sale (POS) Systems
IP Telephony
Automobile/Home Audio Systems
Industrial
