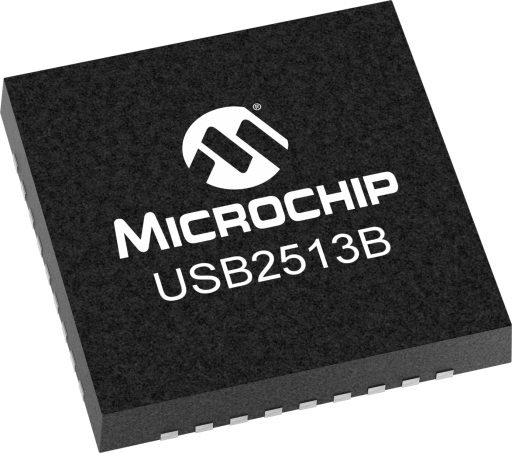

Microchip USB2513BT-I/M2
Manufacturer No:
USB2513BT-I/M2
Manufacturer:
Microchip
Package:
36-VFQFN Exposed Pad
Description:
The Microchip USB2513B is a versatile, cost-effective, and power-efficient 3-port USB2.0 hi-speed hub controller well-suited for consumer and mobile applications.
Quantity:
In Stock :3417
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Sun, May 31 - Mon, Jun 1, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
USB2513BT-I/M2 Information
Microchip USB2513BT-I/M2 technical specifications, attributes, parameters and parts with similar specifications to Microchip USB2513BT-I/M2.
- Type
- Parameter
- Upstream Port
- USB 2.0
- USB Speed
- USB 2.0
- Downstream Ports
- 3
- SmartHub
- No
- MGMT I/F
- I2C
- ROM I/F
- No
- Op Voltage (V)
- 3.3
- MultiTRAK Tech
- Yes
- Integrated Flash Media Reader
- No
- PortMap
- Yes
- Type
- Parameter
- PortSwap
- Yes
- PHYBoost
- Yes
- Temp. Range Min.
- -40
- Temp. Range Max.
- 85
Download datasheets and manufacturer documentation for Microchip USB2513BT-I/M2.
Data Sheets:
Application Notes:
Supporting Collateral:
Design Checklist:
Brochures:
Microchip's USB251xB is a family of versatile, cost-effective, and power-efficient USB 2.0 hub controllers. Leveraging Microchip's innovative MultiTRAK™ technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB251xB family is a USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance.
Well-suited for consumer and mobile applications, all members of the USB251xB family are available in a space-saving package. The common 36-pin package shared among the 2/3/4 port hub controllers measures only 6x6 mm and provides an ultra small footprint for space-constrained designs while allowing scalable port expansion from two to four ports.
Over 30 programmable features including Microchip's unique PortMap, PortSwap, and PHYBoost are designed to aid system designers in simplifying PCB layout and optimizing bill-of-material cost. Every downstream port of the USB251xB hubs can be enabled to support USB Battery Charging 1.1 specification as a Charging Downstream Port (CDP). A CDP provides universal battery charging capability to a compliant mobile phone or portable electronic device using a standard USB port.
The USB251xB supports an extended operating temperature range of 0°C to 85°C. The USB251xBi is designed to meet -40°C to 85°C industrial temperature requirements. Note that the "M2" product versions are targeted for new designs. The M2 products are manufactured on the latest production flow offering improved efficiencies and capacity. No product versions of the USB251xB are near the end of life, with all versions maintaining full production release status.
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
- Common Applications:
- Mobile PC Docking Stations
- LCD Monitors/TVs
- PC Motherboards
- Gaming Consoles
- Multi-Function Printers
- Cable/DSL Modems
- Set-Top Boxes
- DVD/CD-ROM/DVR
- HDD Enclosures
- Keyboards
- KVM Switches
- Server Front Panels
- Point-of-Sale (POS) Systems
- IP Telephony
- Automobile/Home Audio Systems
- Industrial
