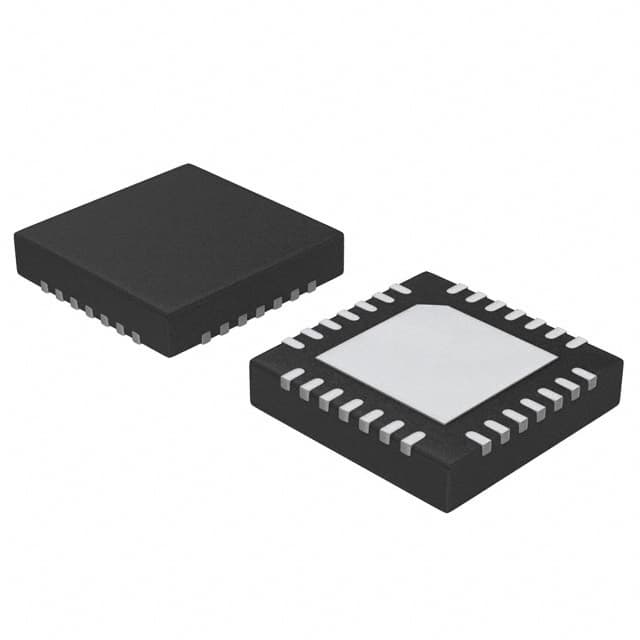

Microchip USB2412-DZK-TR

Manufacturer No:

USB2412-DZK-TR

Manufacturer:

Microchip

Package:

28-VFQFN Exposed Pad

Description:

The Microchip USB2412 is a low-power, single Transaction Translator (STT) 2-port USB 2.0 hub controller IC designed for embedded USB applications.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USB2412-DZK-TR information

Microchip USB2412-DZK-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip USB2412-DZK-TR.

Type
Parameter

Upstream Port
USB 2.0

USB Speed
USB 2.0

Downstream Ports
2

SmartHub
No

MGMT I/F
None

ROM I/F
No

Op Voltage (V)
3.3

MultiTRAK Tech
No

Per-Port Switching
No

Integrated Flash Media Reader
No

PortMap
Yes

PortSwap
Yes

TrueSpeed
No

PHYBoost
Yes

Temp. Range Min.
0

Temp. Range Max.
70

Download datasheets and manufacturer documentation for Microchip USB2412-DZK-TR.

The USB2412 is a low-power, single Transaction Translator (STT) USB 2.0 hub controller IC with two downstream ports for embedded USB applications. The USB2412 supports low-speed, full-speed, and high-speed (if operating as a Hi-Speed USB hub) downstream devices on all of the enabled downstream ports. Designed for low-power, small-footprint, mobile-oriented applications, the USB2412 is a cost-effective USB port expansion solution that requires minimal bill-of-material and configuration options. The USB2412 supports the standard commercial operating temperature range of 0°C to 70°C and is designed to meet ESD protection of up to 4KV on all pins.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Ultra low-power, small footprint hub controller IC with two USB 2.0 downstream ports

Fully compliant with the USB 2.0 specification

Space-saving 28-pin QFN package well-suited for mobile and consumer applications

Fully integrated USB termination and pull-up/pull-down resistors

Supports a single external 3.3 V supply source; internal regulators provide 1.2 V internal core voltage

On-chip 24 MHz crystal driver

4 kilovolts of HBM JESD22-A114F ESD protection (powered and unpowered)

Contains built-in default configuration; no external configuration options or components are required

Downstream port configurable as non-removable ports

Supports compound devices on a per-port basis

Optimized for minimal bill-of-material and low cost designs

28-pin QFN (5x5 mm) RoHS compliant package

Support standard commercial temperature range of 0°C to +70°C

3G/4G/Cable/DSL Modems
LCD Monitors/TVs
Multi-Function Printers
Set-Top Boxes
DVD/CD-ROM/DVR
HDD Enclosures
Keyboards
KVM Switches
Server Front Panels
Point-of-Sale (POS) Systems
